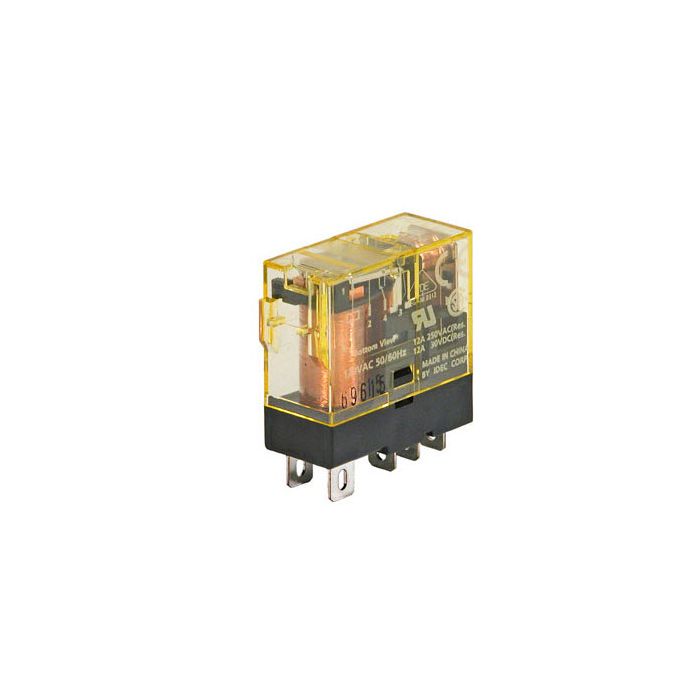

IDEC Miniature General Purpose Relay Plug-In Mount 1P SPDT 12A 24V 5 Pin Flat
IDEC Miniature General Purpose Relay Plug-In Mount 1P SPDT 12A 24V 5 Pin Flat
In stock
SKU
IDCRJ1S-CL-A24
Miniature General Purpose Relay, 24 Volt AC Coil Voltage, 12 Amp, 0.9 VA, 5 Pin Flat, 1 Pole, SPDT Configuration, 243 Ohm, 15 Operate/10 Release ms Operating Time, 200000 Cycles AC Load/100000 Cycles DC Load, Plug-In Terminal, Plug-In Mounting, IP40, Silver Nickel Alloy Contact, -40 to 70 deg C, 28.8 mm Height, 31.1 mm Width, 12.7 mm Depth
| Features |
|
|---|---|
| Brand | IDEC |
| Range Name | RJ Series |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | RJ1S-CL-A24 |
| Contact Configuration | SPDT |
| Contact Material | Silver Nickel Alloy |
| Current | 12 Amp |
| Height | 28.8 mm |
| Depth | 12.7 mm |
| Mounting Method | Plug-In |
| IP Rating | IP40 |
| Number Of Poles | 1 Pole |
| Operating Coil Voltage | 24 Volt AC |
| Operating Time | 15 Operate/10 Release ms |
| Pin Configuration | 5 Pin Flat |
| Operating Cycles | 200000 Cycles AC Load/100000 Cycles DC Load |
| Temperature | -40 to 70 deg C |
| Power Rating | 0.9 VA |
| Product Type | Power Relays |
| Resistance | 243 Ohm |
| Terminal Type | Plug-In |
| Width | 31.1 mm |
Description
Miniature General Purpose Relay, 24 Volt AC Coil Voltage, 12 Amp, 0.9 VA, 5 Pin Flat, 1 Pole, SPDT Configuration, 243 Ohm, 15 Operate/10 Release ms Operating Time, 200000 Cycles AC Load/100000 Cycles DC Load, Plug-In Terminal, Plug-In Mounting, IP40, Silver Nickel Alloy Contact, -40 to 70 deg C, 28.8 mm Height, 31.1 mm Width, 12.7 mm Depth
