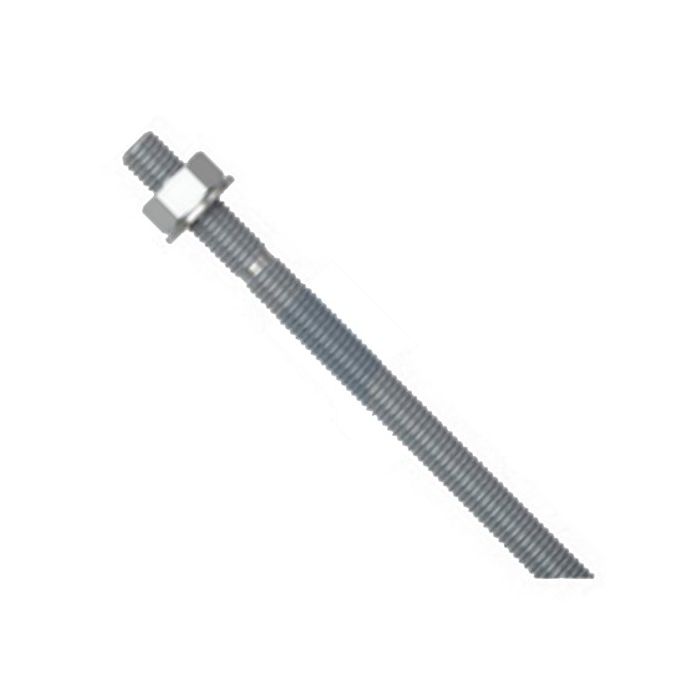

Hobson Stud Chemical Anchor Kit Flat Top Stud M16x190 mm Hex Nut Head Class 5.8 Hot Dip Galvanised
Hobson Stud Chemical Anchor Kit Flat Top Stud M16x190 mm Hex Nut Head Class 5.8 Hot Dip Galvanised
In stock
SKU
HOBMCS58GCM160190
Stud Chemical Anchor Kit Flat Top Stud, M16, M16 Thread, Hex Nut Head, 24mm Socket Head, 190mm Length, 18mm Drill Diameter, Class 5.8, Hot Dip Galvanised, 125mm Embedment Depth, 43mm Max. Fixture Thickness, 18mm Fixture Hole Diameter, 160mm Min. Concrete Thickness, 65mm Min. Edge Distance, 65mm Min. Spacing, Tensile Strength: 520 MPa, Torque Rating: 80 N-m, Angle Cut Point
| Features |
|
|---|---|
| Brand | Hobson |
| Standard Pack Size | 10 |
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | MCS58GCM160190 |
| Diameter | M16 |
| Drill Diameter | 18mm |
| Embedment Depth | 125mm |
| Finish | Hot Dip Galvanised |
| Fixture Hole Diameter | 18mm |
| Grade | Class 5.8 |
| Head Size | 24mm Socket |
| Head Type | Hex Nut |
| Length | 190mm |
| Maximum Fixture Thickness | 43mm |
| Minimum Concrete Thickness | 160mm |
| Minimum Spacing | 65mm |
| Minimum Edge Distance | 65mm |
| Please Note | Angle Cut Point |
| Product Type | Stud Chemical Anchor Kit Flat Top Stud |
| Tensile Strength | 520 MPa |
| Thread Size | M16 |
| Torque Rating | 80 N-m |
Description
Stud Chemical Anchor Kit Flat Top Stud, M16, M16 Thread, Hex Nut Head, 24mm Socket Head, 190mm Length, 18mm Drill Diameter, Class 5.8, Hot Dip Galvanised, 125mm Embedment Depth, 43mm Max. Fixture Thickness, 18mm Fixture Hole Diameter, 160mm Min. Concrete Thickness, 65mm Min. Edge Distance, 65mm Min. Spacing, Tensile Strength: 520 MPa, Torque Rating: 80 N-m, Angle Cut Point
