Heinelec Combination RCD Circuit Breaker RCBO 1 Pole+N 20 Amp 110-240V 6 kA 1Module 17.5mm DIN Rail Surface

Heinelec Combination RCD Circuit Breaker RCBO 1 Pole+N 20 Amp 110-240V 6 kA 1Module 17.5mm DIN Rail Surface

In stock
SKU
HEIQF10A220
Add to Compare

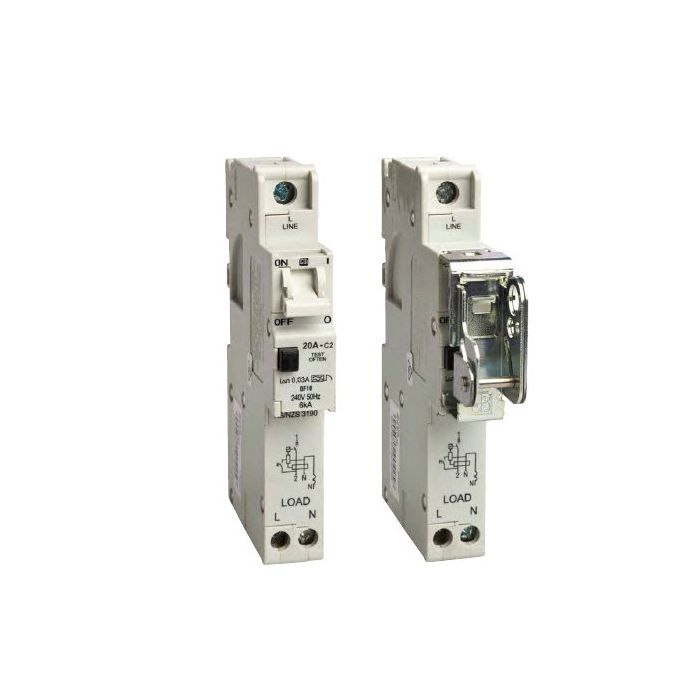

main product photo
Combination RCD Circuit Breaker RCBO, 110-240 Volt, 20 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 1 + N Pole, 1 Module 17.5 mm, DIN Rail/Surface Mounting, 40 to 85 deg C, 1129 mm Height, 73 mm Width
More Information
More Information
Features
  • AC branch of earth leakage protection circuit breakers
  • Hydraulic magnetic technology
  • Tripped indication with mid-trip position
  • DIN mount 18 mm pitch MCB providing overload, short circuit and earth leakage protection
  • Available in 1 pole + Neutral combination
  • Available from 6-32 Amp
  • Single pole with unswitched neutral earth leakage protection
  • Padlocking facility
  • Precision tripping characterstics
  • Trip indication with mid trip position
Brand Heinelec
Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product QF10A220
Current 20 Amp
Frequency 50 Hz
Height 1129 mm
Interrupt Capacity 6 kA
Modules 1 Module 17.5 mm
Number Of Poles 1 Pole
Mounting Method DIN Rail/Surface
Product Type Combination RCBO
Trip Sensitivity 30 mA
Temperature 40 to 85 deg C
Voltage 110-240 Volt
Width 73 mm

Description

Combination RCD Circuit Breaker RCBO, 110-240 Volt, 20 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 1 + N Pole, 1 Module 17.5 mm, DIN Rail/Surface Mounting, 40 to 85 deg C, 1129 mm Height, 73 mm Width
