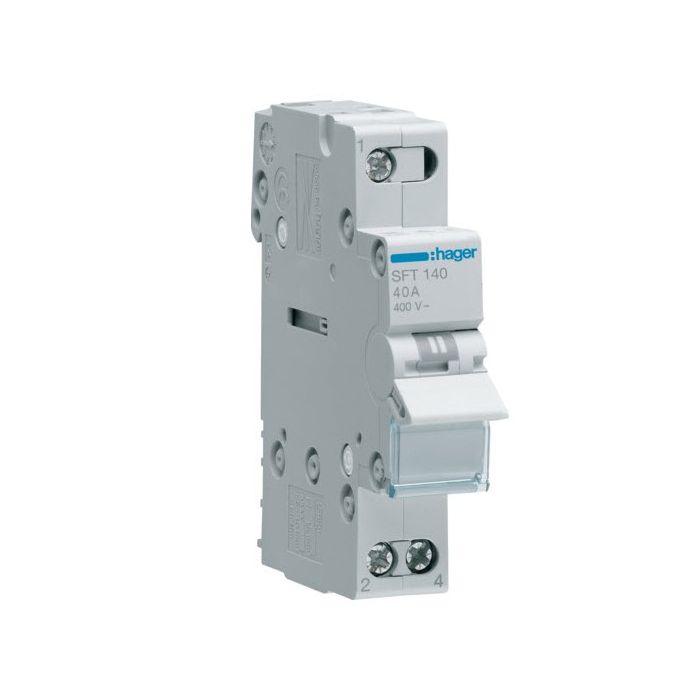

Hager Changeover Switch 1P 40A AC21 DIN Rail Mount IP20
Hager Changeover Switch 1P 40A AC21 DIN Rail Mount IP20
In stock
SKU
HAGSFT140
Changeover Switch DIN Mount, 230 Volt, 40 Amp AC21 at 230 Volt AC21, 2.1 Watt, 50/60 Hz, 1 Pole, Manual Actuator, 1.5/10 sq-mm Flexible/1.5/16 sq-mm Rigid, DIN Rail Mounting, Screw Connection, IP20, -20 to 50 deg, 83 mm Height, 17.5 mm Width, 70 mm Depth, Centre Off Changeover Top
| Brand | Hager |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | SFT140 |
| IP Rating | IP20 |
| Product Type | Changeover Switches |
| Voltage | 230 Volt |
| AC21 Rating | 40 Amp AC21 at 230 Volt |
| Conductor Size | 1.5/10 sq-mm Flexible - 1.5/16 sq-mm Rigid |
| Connection Type | Screw |
| Number Of Poles | 1 Pole |
| Please Note | Centre Off Changeover Top |
| Height | 83 mm |
| Width | 17.5 mm |
| Depth | 70 mm |
| Frequency | 50/60 Hz |
| Power Rating | 2.1 Watt |
| Temperature | -20 to 50 deg |
| Mounting Method | DIN Rail |
| Actuator | Manual |
Description
Changeover Switch DIN Mount, 230 Volt, 40 Amp AC21 at 230 Volt AC21, 2.1 Watt, 50/60 Hz, 1 Pole, Manual Actuator, 1.5/10 sq-mm Flexible/1.5/16 sq-mm Rigid, DIN Rail Mounting, Screw Connection, IP20, -20 to 50 deg, 83 mm Height, 17.5 mm Width, 70 mm Depth, Centre Off Changeover Top
