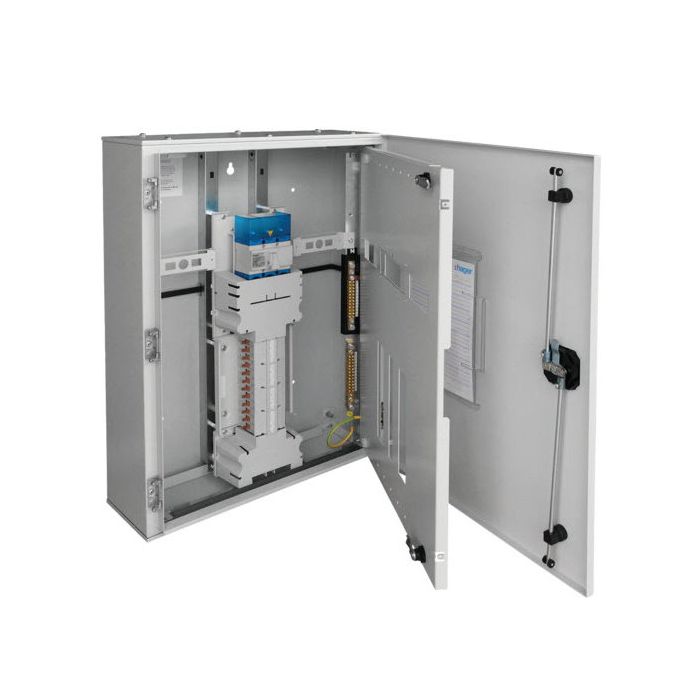

Hager Apex MCB Panelboard W/250A Main Switch Full Chassis Surface 96P 1.6mm Galvanised Steel Light Grey IP43
Hager Apex MCB Panelboard W/250A Main Switch Full Chassis Surface 96P 1.6mm Galvanised Steel Light Grey IP43
In stock
SKU
HAGJPA9600S25TW
Modular MCB Panelboard, Full Chassis, 250 Amp, Number of Poles: 96, Keylock and Field Reversible Door, Surface, For Use With: MCBs, IP43, 1.6mm Galvanised Steel, RAL7035 Light Grey, Ripple Powder Coated, 1600mm Height x 600mm Width x 200mm Depth
| Features |
|
|---|---|
| Brand | Hager |
| Range Name | Performa Apex |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121100 |
| UOM | EA |
| Vendor Product | JPA9600S25TW |
| Colour | Light Grey |
| Current | 250 Amp |
| Dimensions | 1600mm Height x 600mm Width x 200mm Depth |
| Door Type | Keylock/Field Reversible |
| Finish | Ripple Powder Coated |
| IP Rating | IP43 |
| Material | 1.6mm Galvanised Steel |
| Mounting Method | Surface |
| Number Of Poles | 96P |
| Product Type | Panelboards MCB |
Description
Modular MCB Panelboard, Full Chassis, 250 Amp, Number of Poles: 96, Keylock and Field Reversible Door, Surface, For Use With: MCBs, IP43, 1.6mm Galvanised Steel, RAL7035 Light Grey, Ripple Powder Coated, 1600mm Height x 600mm Width x 200mm Depth
