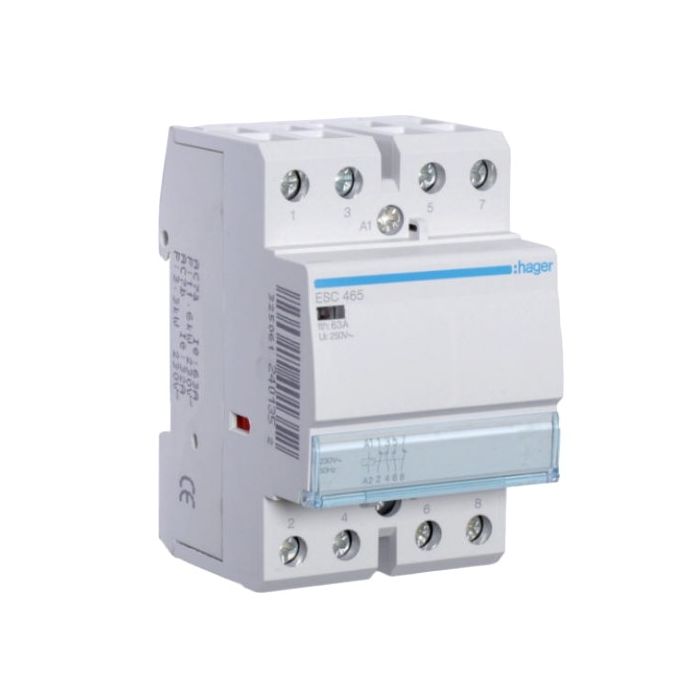

Hager DIN Contactor 4 Pole 32A AC3 63A AC1 230V 2NO-2NC DIN Rail Mount
Hager DIN Contactor 4 Pole 32A AC3 63A AC1 230V 2NO-2NC DIN Rail Mount
In stock
SKU
HAGESC465
Contactor, 230 Volt AC Coil Voltage, 230 Volt Control Circuit, 1 Normally Opened/1 Normally Closed Configuration, 32 Amp AC3 AC3 Rating, 63 Amp AC1 AC1 Rating, 4 Pole, 25 ms Closing/20 ms Opening Operating Time, Screw Terminal, DIN Rail Mounting, IP2X, -10 to 50 deg C, 85 mm Height, 54 mm Width, 60 mm Depth
| Features |
|
|---|---|
| Brand | Hager |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | ESC465 |
| AC1 Rating (Amps) | 63 Amp AC1 |
| AC3 Rating (Amps) | 32 Amp AC3 |
| Contact Configuration | 1 Normally Opened/1 Normally Closed |
| Control Circuit Voltage | 230 Volt |
| Depth | 60 mm |
| Height | 85 mm |
| IP Rating | IP2X |
| Mounting Method | DIN Rail |
| Number Of Poles | 4 Pole |
| Operating Coil Voltage | 230 Volt AC |
| Operating Time | 25 ms Closing/20 ms Opening |
| Product Type | Contactors General |
| Temperature | -10 to 50 deg C |
| Terminal Connection | Screw |
| Width | 54 mm |
Description
Contactor, 230 Volt AC Coil Voltage, 230 Volt Control Circuit, 1 Normally Opened/1 Normally Closed Configuration, 32 Amp AC3 AC3 Rating, 63 Amp AC1 AC1 Rating, 4 Pole, 25 ms Closing/20 ms Opening Operating Time, Screw Terminal, DIN Rail Mounting, IP2X, -10 to 50 deg C, 85 mm Height, 54 mm Width, 60 mm Depth
