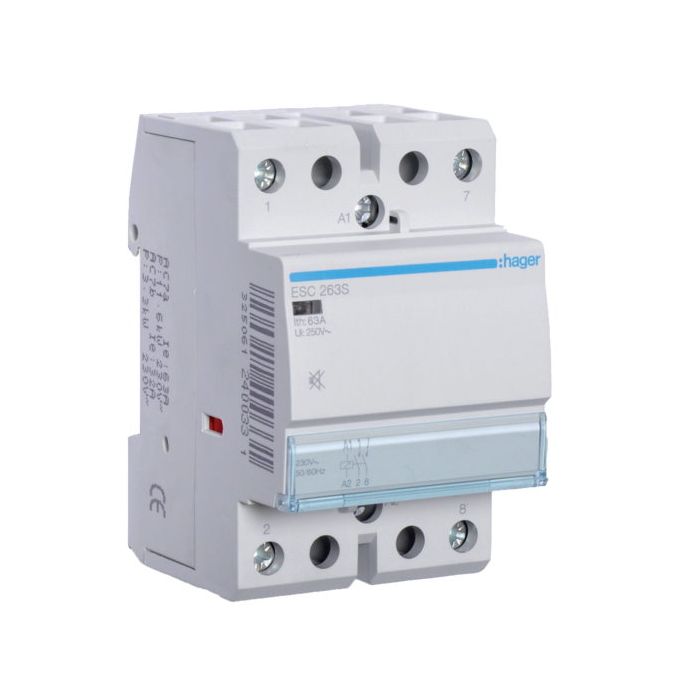

Hager DIN Contactor 2 Pole 32A AC3 63A AC1 230V 2NO DIN Rail Mount
Hager DIN Contactor 2 Pole 32A AC3 63A AC1 230V 2NO DIN Rail Mount
In stock
SKU
HAGESC263S
DIN Contactor, 230 Volt AC, AC3 Rating (Amps): 32, AC1 Rating (Amps): 63, 2NO, 2 Pole, Operating Time: 25 ms Closing, 20 ms Opening, Screw Terminal, DIN Rail Mount, IP2X, -10 to 50 deg C, 85 mm Height, 54 mm Width, 60 mm Depth
| Features |
|
|---|---|
| Brand | Hager |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | ESC263S |
| AC1 Rating (Amps) | 63 Amp AC1 |
| AC3 Rating (Amps) | 32 Amp AC3 |
| Contact Configuration | 1 Normally Opened |
| Depth | 60 mm |
| Height | 85 mm |
| IP Rating | IP2X |
| Mounting Method | DIN Rail |
| Number Of Poles | 2 Pole |
| Operating Coil Voltage | 230 Volt AC |
| Operating Time | 25 ms Closing/20 ms Opening |
| Product Type | Contactors DIN |
| Temperature | -10 to 50 deg C |
| Terminal Connection | Screw |
| Width | 54 mm |
Description
DIN Contactor, 230 Volt AC, AC3 Rating (Amps): 32, AC1 Rating (Amps): 63, 2NO, 2 Pole, Operating Time: 25 ms Closing, 20 ms Opening, Screw Terminal, DIN Rail Mount, IP2X, -10 to 50 deg C, 85 mm Height, 54 mm Width, 60 mm Depth
