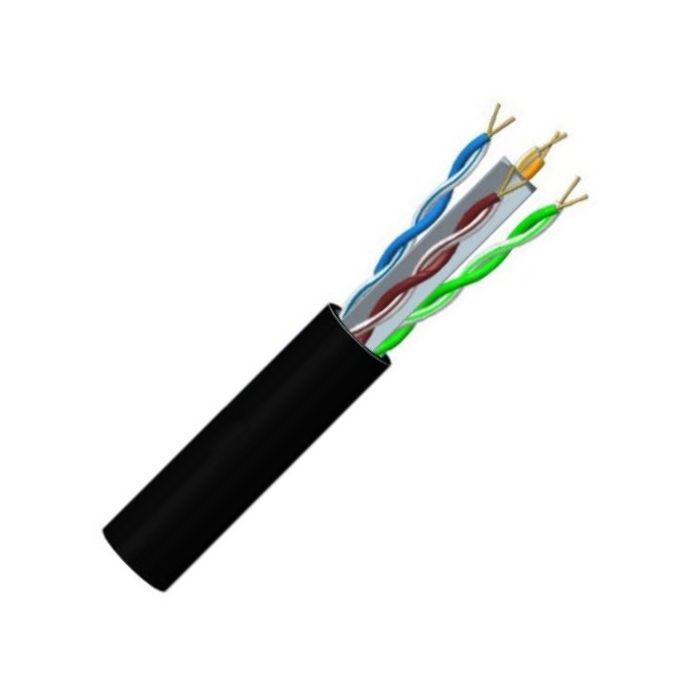

Garland Pro Series UTP Data Cable Cat6 4 Pair 23AWG Gel Filled Polyethylene/Polyethylene Black 305M
Garland Pro Series UTP Data Cable Cat6 4 Pair 23AWG Gel Filled Polyethylene/Polyethylene Black 305M
In stock
SKU
GARUTPL6JFBK305
UTP Data Cable Cat6 4 Pair, 23 AWG/0.255 mm, 0.57mm Conductor Diameter, 73.16 Ohm/km at 20 deg C Conductor Resistance, Stranding: 1/0.57mm, Bend Radius: Static: 73mm, 143 N Max. Pulling Force, 4 Pair, Cat6 UTP Cable, PACW Conductor, Cross-web Separator/ Water Resistant Flooding Compound Filler, PE Insulation, PE Sheath, Black Sheath, 25 to 70 deg C, 305 mtr Length, 7.3mm Outside Diameter
| Brand | Garland |
|---|---|
| Standard Pack Size | 305 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | UTPL6JFBK305 |
| Bend Radius | Static: 73mm |
| Cable Type | Cat6 UTP |
| Conductor Diameter | 0.57mm |
| Conductor Material | PACW |
| Conductor Resistance | 73.16 Ohm/km at 20 deg C |
| Conductor Size | 23 AWG/0.255 mm |
| Filler Material | Cross-web Separator/ Water Resistant Flooding Compound |
| Insulation Material | PE Compound |
| Length | 305 mtr |
| Outside Diameter | 7.3mm |
| Max. Pulling Force | 143 N |
| Pair Count | 4 Pair |
| Product Type | Cat6 Cable |
| Sheath Colour | Black |
| Sheath Material | PE Compound |
| Stranding | 1/0.57mm |
| Temperature | 25 to 70 deg C |
Description
UTP Data Cable Cat6 4 Pair, 23 AWG/0.255 mm, 0.57mm Conductor Diameter, 73.16 Ohm/km at 20 deg C Conductor Resistance, Stranding: 1/0.57mm, Bend Radius: Static: 73mm, 143 N Max. Pulling Force, 4 Pair, Cat6 UTP Cable, PACW Conductor, Cross-web Separator/ Water Resistant Flooding Compound Filler, PE Insulation, PE Sheath, Black Sheath, 25 to 70 deg C, 305 mtr Length, 7.3mm Outside Diameter
