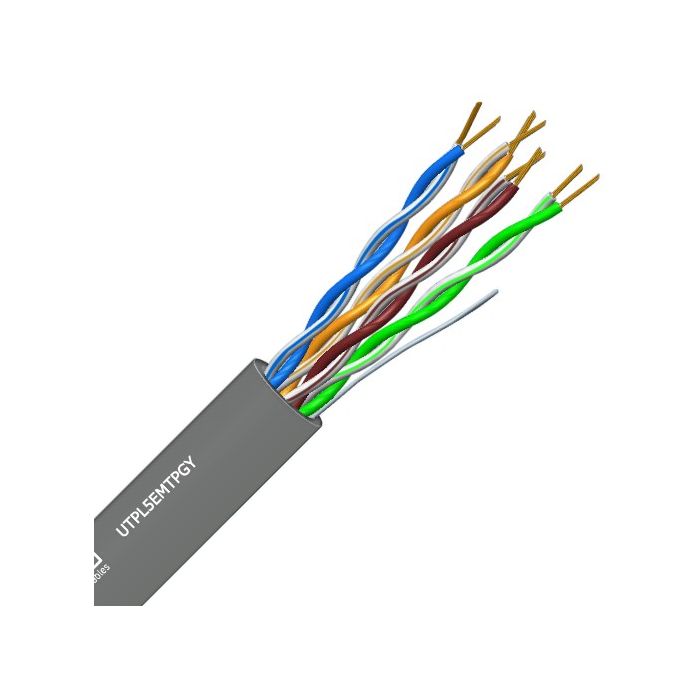

Garland UTP Data Cable Cat5e 4 Pair 24AWG Polyethylene Grey 305M
Garland UTP Data Cable Cat5e 4 Pair 24AWG Polyethylene Grey 305M
In stock
SKU
GARUTPL5EMTPGY305W
CAT 5e Data Cable UTP, 24 AWG/0.23 mm, 0.609 mm Conductor Diameter, 93.8 Ohm/km Conductor Resistance, 7/0.203 mm Strands, 1000 MOhm/km Insulation Resistance, 0.18 mm Insulation Thickness, Cat 5e UTP, Insulation: >300% Outer Sheath: >100% Elongation, 4 Pair, 55 mm Installation Bend Radius, 126 N Max. Pulling Force, Before Aging >13.8 MPa Tensile Strength, Bare Copper Conductor, Rip Cord: Polyester Multi Yarn Filler, Polyethylene Compound Insulation, Grey Sheath, 15 to 70 deg C, 305 mtr Length
| Brand | Garland |
|---|---|
| Standard Pack Size | 305 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | UTPL5EMTPGY305W |
| Cable Type | Cat 5e UTP |
| Bend Radius | 55 mm Installation |
| Conductor Diameter | 0.609 mm |
| Conductor Resistance | 93.8 Ohm/km |
| Conductor Size | 24 AWG/0.23 mm |
| Conductor Material | Bare Copper |
| Elongation | Insulation: >300% Outer Sheath: >100% |
| Filler Material | Rip Cord: Polyester Multi Yarn |
| Insulation Resistance | 1000 MOhm/km |
| Insulation Thickness | 0.18 mm |
| Insulation Material | Polyethylene Compound |
| Length | 305 mtr |
| Max. Pulling Force | 126 N |
| Pair Count | 4 |
| Sheath Colour | Grey |
| Stranding | 7/0.203 mm |
| Temperature | 15 to 70 deg C |
| Tensile Strength | Before Aging >13.8 MPa |
Description
CAT 5e Data Cable UTP, 24 AWG/0.23 mm, 0.609 mm Conductor Diameter, 93.8 Ohm/km Conductor Resistance, 7/0.203 mm Strands, 1000 MOhm/km Insulation Resistance, 0.18 mm Insulation Thickness, Cat 5e UTP, Insulation: >300% Outer Sheath: >100% Elongation, 4 Pair, 55 mm Installation Bend Radius, 126 N Max. Pulling Force, Before Aging >13.8 MPa Tensile Strength, Bare Copper Conductor, Rip Cord: Polyester Multi Yarn Filler, Polyethylene Compound Insulation, Grey Sheath, 15 to 70 deg C, 305 mtr Length
