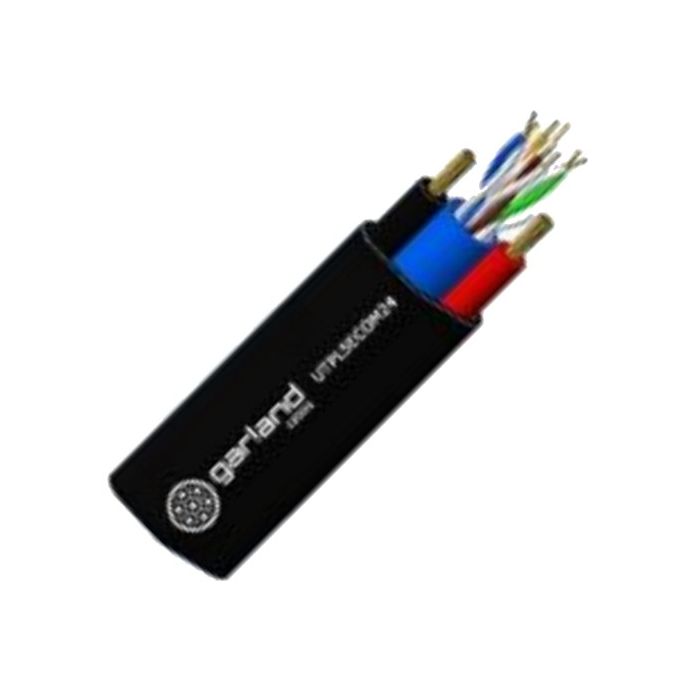

Garland Composite LAN Cable Cat5e 4 Pair 24/19AWG Polyolefin/PVC Black 250M

Garland Composite LAN Cable Cat5e 4 Pair 24/19AWG Polyolefin/PVC Black 250M

In stock
SKU
GARUTPL5ECOM24250
CAT 5e LAN Cable, 24-9 AWG/0.2 mm and 0.75 mm, 0.503/1.133 mm Conductor Diameter, 27.5 Ohm/km and 9.38 Ohm/km Conductor Resistance, 1/0.503 mm and 24/0.2 mm Strands, 0.18/0.75 mm Insulation Thickness, 0.7 mm Sheath Thickness, Cat 5e, 4 Pair, 70 mm Installation Bend Radius, 111 N Max. Pulling Force, Bare Copper Conductor, Rip Cord: Polyester Multi Yarn Filler, Thermoplastic Polyolefin and PVC Insulation, PVC Sheath, Black Sheath, 150 to 700 deg C, 250 mtr Length, 7 mm x 12.4 mm Outside Diameter
More Information
Brand Garland
Standard Pack Size 250
UNSPSC Class 26121600
UOM MTR
Vendor Product UTPL5ECOM24250
Cable Type Cat 5e
Bend Radius 70 mm Installation
Conductor Diameter 0.503/1.133 mm
Conductor Resistance 27.5 Ohm/km and 9.38 Ohm/km
Conductor Size 24-9 AWG/0.2 mm and 0.75 mm
Conductor Material Bare Copper
Filler Material Rip Cord: Polyester Multi Yarn
Insulation Thickness 0.18/0.75 mm
Insulation Material Thermoplastic Polyolefin and PVC
Length 250 mtr
Max. Pulling Force 111 N
Pair Count 4
Outside Diameter 7 mm x 12.4 mm
Sheath Colour Black
Sheath Material PVC
Sheath Thickness 0.7 mm
Stranding 1/0.503 mm and 24/0.2 mm
Temperature 150 to 700 deg C

Description

CAT 5e LAN Cable, 24-9 AWG/0.2 mm and 0.75 mm, 0.503/1.133 mm Conductor Diameter, 27.5 Ohm/km and 9.38 Ohm/km Conductor Resistance, 1/0.503 mm and 24/0.2 mm Strands, 0.18/0.75 mm Insulation Thickness, 0.7 mm Sheath Thickness, Cat 5e, 4 Pair, 70 mm Installation Bend Radius, 111 N Max. Pulling Force, Bare Copper Conductor, Rip Cord: Polyester Multi Yarn Filler, Thermoplastic Polyolefin and PVC Insulation, PVC Sheath, Black Sheath, 150 to 700 deg C, 250 mtr Length, 7 mm x 12.4 mm Outside Diameter
