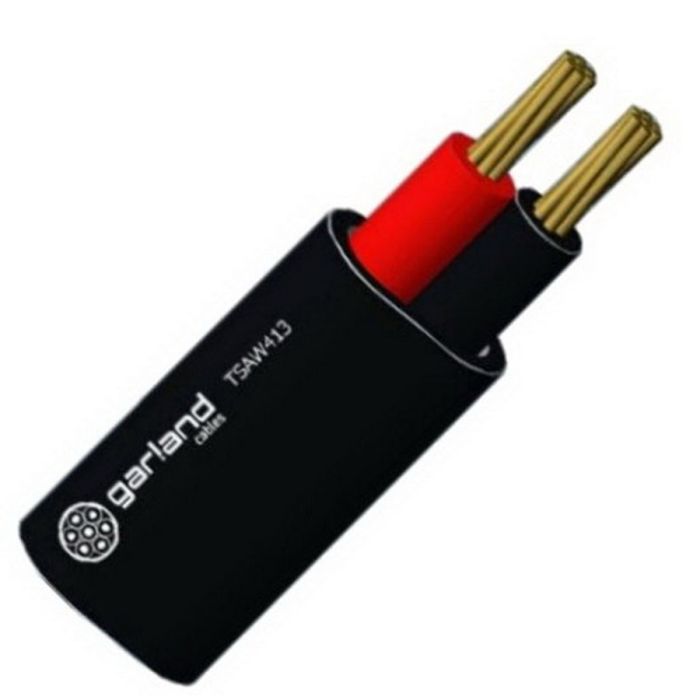

Garland 2.9mm 2 Core Black Figure 8 Speaker Cable Double Insulated PVC/PVC
Garland 2.9mm 2 Core Black Figure 8 Speaker Cable Double Insulated PVC/PVC
In stock
SKU
GARTSAW413500
Speaker Cable, Figure 8, Double Insulated, 2.9 mm, Annealed Copper, 240 Volt, 2 Core, 41/0.3 mm Strands, 4.8 mm x 8.1 mm Overall Diameter, 48 mm Static Bend Radius, 0.6 mm Insulation Thickness, 0.6 mm Sheath Thickness, 405 N Pulling Tension, DC: 6.43 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, Red/Black Core, PVC Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C, AS/NZS 1125 AS/NZS 3808
| Brand | Garland |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | TSAW413500 |
| Conductor Resistance | DC: 6.43 Ohm/km |
| Bend Radius | Static 48 mm |
| Conductor Size | 2.9 mm |
| Core Colours | Red/Black |
| Conductor Type | Annealed Copper |
| Insulation Material | PVC |
| Insulation Resistance | 50 MOhm/km |
| Number of Cores | 2 Core |
| Insulation Thickness | 0.6 mm |
| Overall Diameter | 4.8 mm x 8.1 mm |
| Product Type | Speaker Cable Figure 8 Double Insulated |
| Pulling Tension | 405 N |
| Sheath Colour | Black |
| Sheath Thickness | 0.6 mm |
| Sheath Material | PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Stranding | 41/0.3 mm |
| Temperature | -15 to 70 deg C |
| Voltage | 240 Volt |
Description
Speaker Cable, Figure 8, Double Insulated, 2.9 mm, Annealed Copper, 240 Volt, 2 Core, 41/0.3 mm Strands, 4.8 mm x 8.1 mm Overall Diameter, 48 mm Static Bend Radius, 0.6 mm Insulation Thickness, 0.6 mm Sheath Thickness, 405 N Pulling Tension, DC: 6.43 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, Red/Black Core, PVC Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C, AS/NZS 1125 AS/NZS 3808
