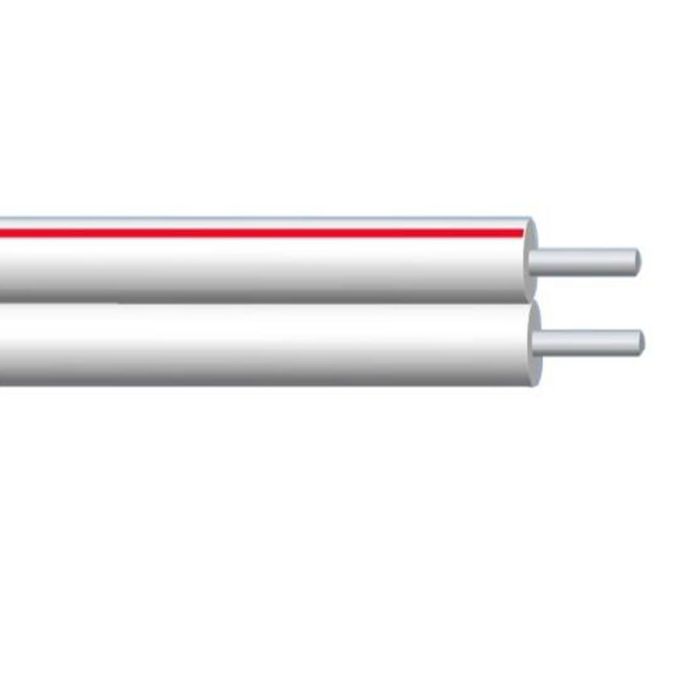

Garland Pro Series Shot Fire Cable 2 Core Figure 8 0.38mm V90 PVC White/Red Trace
Garland Pro Series Shot Fire Cable 2 Core Figure 8 0.38mm V90 PVC White/Red Trace
In stock
SKU
GARSF17WHRD100
Shot Fire Cable, 2 Core, Figure 8, 0.38 mm, 21 AWG, Tinned Annealed Copper, 1/0.7 mm Strands, Bend Radius: Static - 15 mm, 0.35 mm Insulation Thickness, 53 N Pulling Tension, Conductor Resistance: DC - 46.6 Ohm/km, Insulation Resistance: 50 MOhm/km, V-90 PVC Insulation, Unsheathed, White/Red Trace Insulation, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808
| Brand | Garland |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | SF17WHRD100 |
| Conductor Resistance | DC: 46.6 Ohm/km |
| Bend Radius | Static 15 mm |
| Conductor Size | 0.38 mm |
| Conductor Type | Tinned Annealed Copper |
| Insulation Colour | White/Red Trace |
| Insulation Material | V-90 PVC |
| Insulation Resistance | 50 MOhm/km |
| Number of Cores | 2 Core |
| Insulation Thickness | 0.35 mm |
| Product Type | Shot Fire Cable Figure 8 |
| Pulling Tension | 53 N |
| Sheath Material | Unsheathed |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Stranding | 1/0.7 mm |
| Temperature | -15 to 90 deg C |
Description
Shot Fire Cable, 2 Core, Figure 8, 0.38 mm, 21 AWG, Tinned Annealed Copper, 1/0.7 mm Strands, Bend Radius: Static - 15 mm, 0.35 mm Insulation Thickness, 53 N Pulling Tension, Conductor Resistance: DC - 46.6 Ohm/km, Insulation Resistance: 50 MOhm/km, V-90 PVC Insulation, Unsheathed, White/Red Trace Insulation, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808
