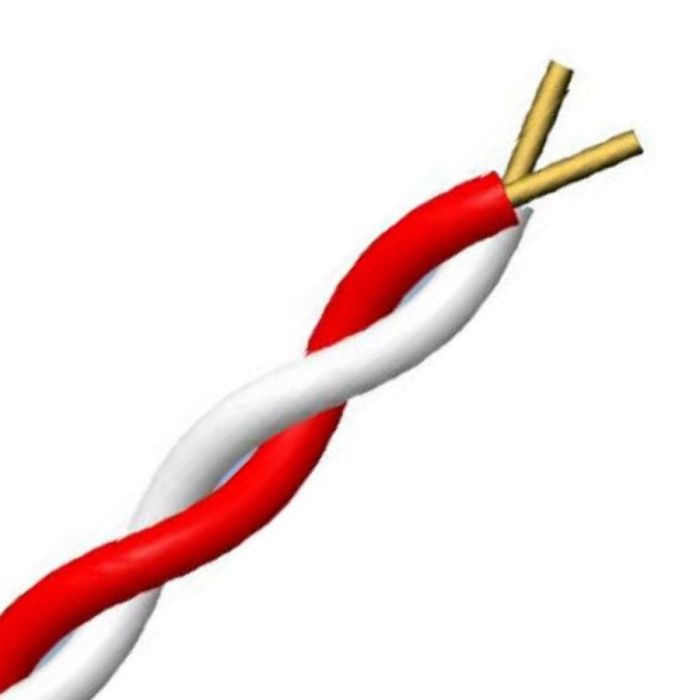

Garland Pro Series Shot Fire Cable 2 Core Twisted 0.292mm V90 PVC Red/White
Garland Pro Series Shot Fire Cable 2 Core Twisted 0.292mm V90 PVC Red/White
In stock
SKU
GARSF16RW200
Shot Fire Cable, 2 Core, Twisted, 0.292 mm, 23 AWG, Plain Annealed Copper, 1/0.61 mm Strands, 0.4 mm Insulation Thickness, Conductor Resistance: DC - 62.2 Ohm/km, Insulation Resistance: 50 MOhm/km, V-90 PVC Insulation, Unsheathed, Red/White Insulation, -15 to 90 deg C
| Brand | Garland |
|---|---|
| Standard Pack Size | 200 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | SF16RW200 |
| Conductor Resistance | DC: 62.2 Ohm/km |
| Conductor Size | 0.292 mm |
| Conductor Type | Annealed Copper |
| Insulation Colour | Red/White |
| Insulation Material | V-90 PVC |
| Insulation Resistance | 50 MOhm/km |
| Number of Cores | 2 Core |
| Insulation Thickness | 0.4 mm |
| Product Type | Shot Fire Cable |
| Sheath Material | Unsheathed |
| Stranding | 1/0.61 mm |
| Temperature | -15 to 90 deg C |
Description
Shot Fire Cable, 2 Core, Twisted, 0.292 mm, 23 AWG, Plain Annealed Copper, 1/0.61 mm Strands, 0.4 mm Insulation Thickness, Conductor Resistance: DC - 62.2 Ohm/km, Insulation Resistance: 50 MOhm/km, V-90 PVC Insulation, Unsheathed, Red/White Insulation, -15 to 90 deg C
