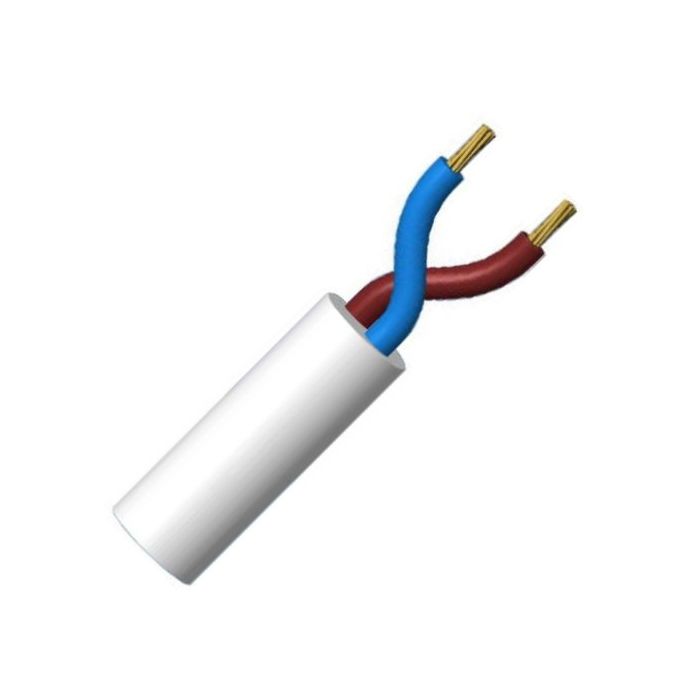

Garland Pro Series Ordinary Duty Flexible Cable 2 Core 0.75mm 250/440V Plain Annealed Copper PVC/PVC White
Garland Pro Series Ordinary Duty Flexible Cable 2 Core 0.75mm 250/440V Plain Annealed Copper PVC/PVC White
In stock
SKU
GAROD224WH
Flexible Cable, Ordinary Duty, 2 Core, 0.75 mm, Plain Annealed Copper, 250/440 Volt, 24/0.2 mm Strands, Static - 65 mm, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, Tensile Strength: Before Aging - >12 MPa, Conductor Resistance: DC - 26 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, Brown Blue Cores, White Sheath, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 3191
| Brand | Garland |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | OD224WH |
| Bend Radius | Static: 65 mm |
| Conductor Resistance | 26 Ohm/km |
| Conductor Size | 0.75 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Brown/Blue |
| Elongation | Insulation: >100% Outer Sheath: >100% |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.6 mm |
| Number of Cores | 2 Core |
| Product Type | Flexible Cable |
| Sheath Colour | White |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 0.9 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 3191 |
| Stranding | 24/0.2 mm |
| Temperature | -15 to 90 deg C |
| Tensile Strength | Before Aging: >12 MPa |
| Voltage | 250-440 Volt |
Description
Flexible Cable, Ordinary Duty, 2 Core, 0.75 mm, Plain Annealed Copper, 250/440 Volt, 24/0.2 mm Strands, Static - 65 mm, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, Tensile Strength: Before Aging - >12 MPa, Conductor Resistance: DC - 26 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, Brown Blue Cores, White Sheath, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 3191
