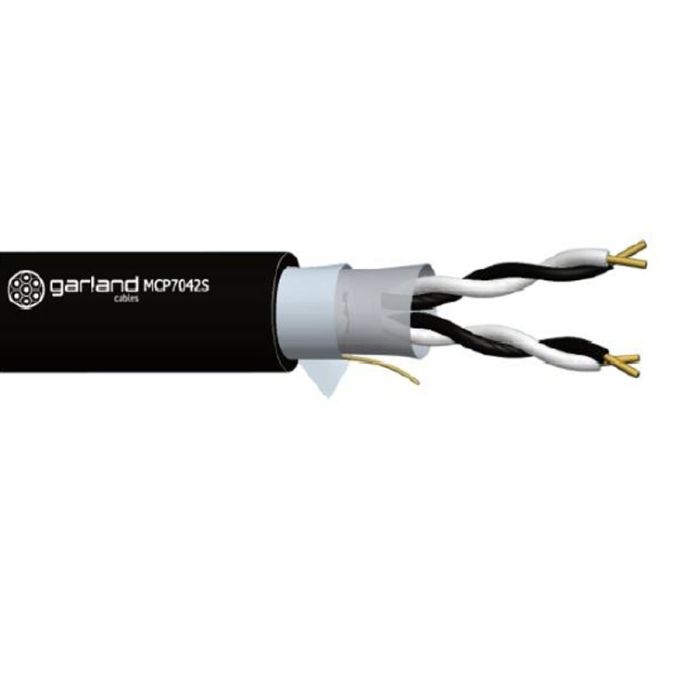

Garland 0.88mm 2 Pair Instrumentation Cable Unarmoured Overall Screened
Garland 0.88mm 2 Pair Instrumentation Cable Unarmoured Overall Screened
In stock
SKU
GARMCP7042S500
Instrumentation Cable, Unarmoured, 0.88 mm, Annealed Copper, 2 Pair, 7/0.4 mm Strands, Overall Screened Screen, 8 mm Overall Diameter, 80 mm Static Bend Radius, Insulation: >100% Outer Sheath: >100% Elongation, 246 N Pulling Tension, >12 MPa Tensile Strength, DC: 22.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 0.3 mm Insulation Thickness, 0.8 mm Sheath Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, PVC Insulation, V-90HT PVC Sheath, Signal Black Sheath, -15 to 90 deg C, AS/ACIF S008 AS 1049
| Brand | Garland |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MCP7042S500 |
| Conductor Size | 0.88 mm |
| Conductor Resistance | DC: 22.2 Ohm/km |
| Conductor Type | Annealed Copper |
| Bend Radius | Static 80 mm |
| Elongation | Insulation: >100% Outer Sheath: >100% |
| Core Colours | Black/White Numerals |
| Insulation Resistance | 50 MOhm/km |
| Insulation Material | PVC |
| Insulation Thickness | 0.3 mm |
| Number of Pairs | 2 Pair |
| Overall Diameter | 8 mm |
| Pulling Tension | 246 N |
| Product Type | Instrumentation Cable Unarmoured |
| Screen Coverage | 100% |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Signal Black |
| Screen Format | Overall Screened |
| Sheath Material | V-90HT PVC |
| Standards | AS/ACIF S008 AS 1049 |
| Sheath Thickness | 0.8 mm |
| Stranding | 7/0.4 mm |
| Tensile Strength | >12 MPa |
| Temperature | -15 to 90 deg C |
Description
Instrumentation Cable, Unarmoured, 0.88 mm, Annealed Copper, 2 Pair, 7/0.4 mm Strands, Overall Screened Screen, 8 mm Overall Diameter, 80 mm Static Bend Radius, Insulation: >100% Outer Sheath: >100% Elongation, 246 N Pulling Tension, >12 MPa Tensile Strength, DC: 22.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 0.3 mm Insulation Thickness, 0.8 mm Sheath Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, PVC Insulation, V-90HT PVC Sheath, Signal Black Sheath, -15 to 90 deg C, AS/ACIF S008 AS 1049
