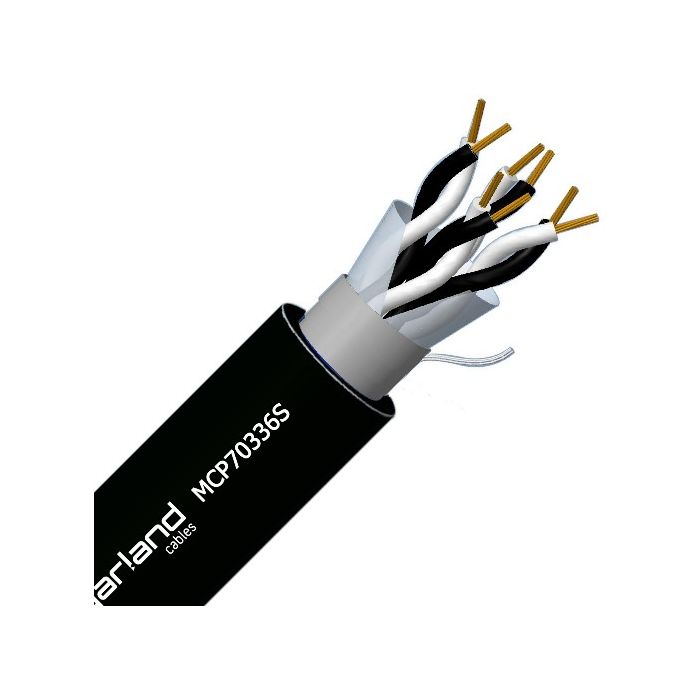

Garland Pro Series Instrumentation Cable Unarmoured 36 Pair Overall Screened 0.5mm 110/150V PVC/AL/PVC Black
Garland Pro Series Instrumentation Cable Unarmoured 36 Pair Overall Screened 0.5mm 110/150V PVC/AL/PVC Black
In stock
SKU
GARMCP70336S500
Instrumentation Cable, Unarmoured, 36 Pair, Overall Screened, 0.5 mm, Bare Copper, 110/150 Volt, 7/0.3 mm Strands, 22 mm Overall Diameter, Bend Radius: Static - 220 mm, 0.32 mm Insulation Thickness, 1.4 mm Sheath Thickness, 2160 N Pulling Tension, Conductor Resistance: DC - 38.4 Ohm/km, 100% Screen Coverage, Aluminium/Polyester Tape Screen, PVC Insulation, PVC Sheath, Black White & Numbered Cores, Black Sheath, -150 to 900 deg C, AS/NZS 1125 , AS/NZS 3808 , IEC60332-1
| Brand | Garland |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MCP70336S500 |
| Conductor Size | 0.5 mm |
| Conductor Resistance | DC: 38.4 Ohm/km |
| Conductor Type | Bare Copper |
| Bend Radius | Static 220 mm |
| Core Colours | Black/White Numerals |
| Insulation Material | PVC |
| Insulation Thickness | 0.32 mm |
| Number of Pairs | 36 Pair |
| Overall Diameter | 22 mm |
| Pulling Tension | 2160 N |
| Product Type | Instrumentation Cable Unarmoured |
| Screen Coverage | 100% |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Black |
| Screen Format | Overall Screened |
| Sheath Material | PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 IEC60332-1 |
| Sheath Thickness | 1.4 mm |
| Stranding | 7/0.3 mm |
| Voltage | 110-150 Volt |
| Temperature | -150 to 900 deg C |
Description
Instrumentation Cable, Unarmoured, 36 Pair, Overall Screened, 0.5 mm, Bare Copper, 110/150 Volt, 7/0.3 mm Strands, 22 mm Overall Diameter, Bend Radius: Static - 220 mm, 0.32 mm Insulation Thickness, 1.4 mm Sheath Thickness, 2160 N Pulling Tension, Conductor Resistance: DC - 38.4 Ohm/km, 100% Screen Coverage, Aluminium/Polyester Tape Screen, PVC Insulation, PVC Sheath, Black White & Numbered Cores, Black Sheath, -150 to 900 deg C, AS/NZS 1125 , AS/NZS 3808 , IEC60332-1
