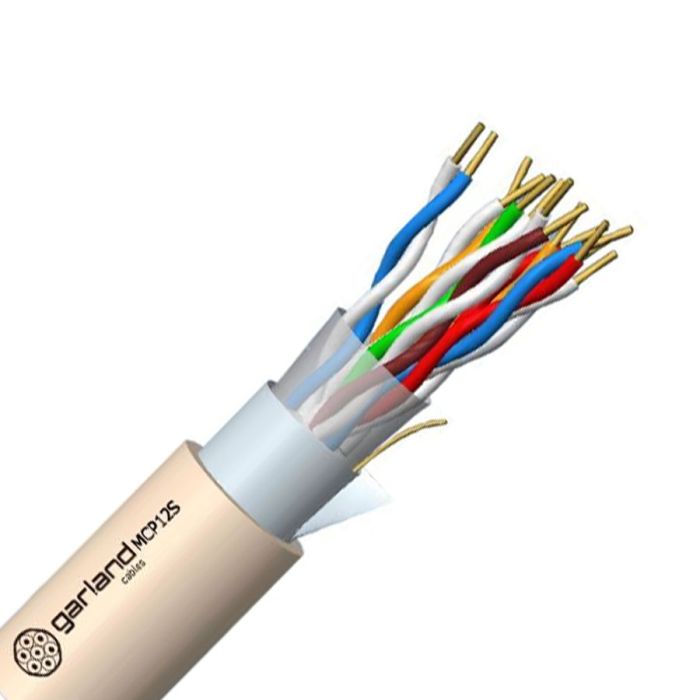

Garland 0.22mm 12 Pair Apricot Data Cable Overall Screened Polypropylene/PVC
Garland 0.22mm 12 Pair Apricot Data Cable Overall Screened Polypropylene/PVC
In stock
SKU
GARMCP12S500
Data Cable, 0.22 mm, Tinned Annealed Copper, 12 Pair, 7/0.2 mm Strands, Overall Screened Screen, 10.4 mm Overall Diameter, 104 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.9 mm Sheath Thickness, Insulation: >150% Outer Sheath: >100% Elongation, 369 N Pulling Tension, >12 MPa Tensile Strength, DC: 95.3 Ohm/km Conductor Resistance, 1000 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Polypropylene Insulation, PVC Sheath, Apricot Sheath, -15 to 70 deg C, AS/ACIF S008 EIA-RS422 UL 758
| Brand | Garland |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MCP12S500 |
| Bend Radius | Static 104 mm |
| Conductor Resistance | DC: 95.3 Ohm/km |
| Conductor Size | 0.22 mm |
| Conductor Type | Tinned Annealed Copper |
| Elongation | Insulation: >150% Outer Sheath: >100% |
| Insulation Resistance | 1000 MOhm/km |
| Insulation Material | Polypropylene |
| Insulation Thickness | 0.28 mm |
| Number of Pairs | 12 Pair |
| Overall Diameter | 10.4 mm |
| Product Type | Data Cable |
| Pulling Tension | 369 N |
| Screen Coverage | 100% |
| Screen Format | Overall Screened |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Apricot |
| Sheath Material | PVC |
| Sheath Thickness | 0.9 mm |
| Temperature | -15 to 70 deg C |
| Standards | AS/ACIF S008 EIA-RS422 UL 758 |
| Stranding | 7/0.2 mm |
| Tensile Strength | >12 MPa |
Description
Data Cable, 0.22 mm, Tinned Annealed Copper, 12 Pair, 7/0.2 mm Strands, Overall Screened Screen, 10.4 mm Overall Diameter, 104 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.9 mm Sheath Thickness, Insulation: >150% Outer Sheath: >100% Elongation, 369 N Pulling Tension, >12 MPa Tensile Strength, DC: 95.3 Ohm/km Conductor Resistance, 1000 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Polypropylene Insulation, PVC Sheath, Apricot Sheath, -15 to 70 deg C, AS/ACIF S008 EIA-RS422 UL 758
