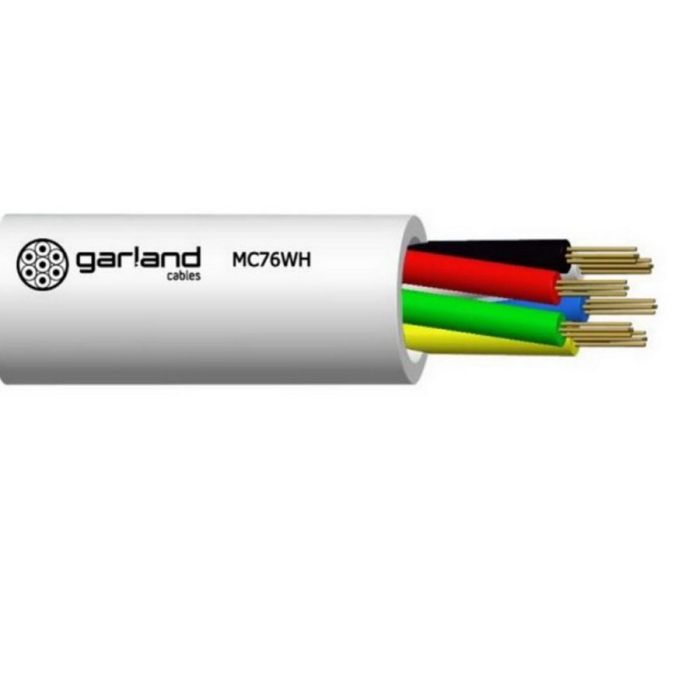

Garland 0.22mm 6 Core White Security Cable PVC/PVC
Garland 0.22mm 6 Core White Security Cable PVC/PVC
In stock
SKU
GARMC76WH100
Security Cable, 0.22 mm, Annealed Copper, 6 Core, 7/0.2 mm Strands, 4.9 mm Overall Diameter, 49 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.5 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 92 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 93.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, PVC Insulation, PVC Sheath, White Sheath, -15 to 70 deg C, AS/ACIF S008 BS3737-3.30 AS 1049
| Brand | Garland |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MC76WH100 |
| Bend Radius | Static 49 mm |
| Conductor Size | 0.22 mm |
| Conductor Resistance | 93.3 Ohm/km |
| Conductor Type | Annealed Copper |
| Elongation | Insulation: >100% Outer Sheath: >100% |
| Insulation Material | PVC |
| Insulation Resistance | 50 MOhm/km |
| Insulation Thickness | 0.28 mm |
| Number of Cores | 6 Core |
| Overall Diameter | 4.9 mm |
| Product Type | Security Cable |
| Pulling Tension | 92 N |
| Standards | AS/ACIF S008 BS3737-3.30 AS 1049 |
| Sheath Colour | White |
| Sheath Material | PVC |
| Sheath Thickness | 0.5 mm |
| Temperature | -15 to 70 deg C |
| Stranding | 7/0.2 mm |
| Tensile Strength | Before Aging: >12 MPa |
Description
Security Cable, 0.22 mm, Annealed Copper, 6 Core, 7/0.2 mm Strands, 4.9 mm Overall Diameter, 49 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.5 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 92 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 93.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, PVC Insulation, PVC Sheath, White Sheath, -15 to 70 deg C, AS/ACIF S008 BS3737-3.30 AS 1049
