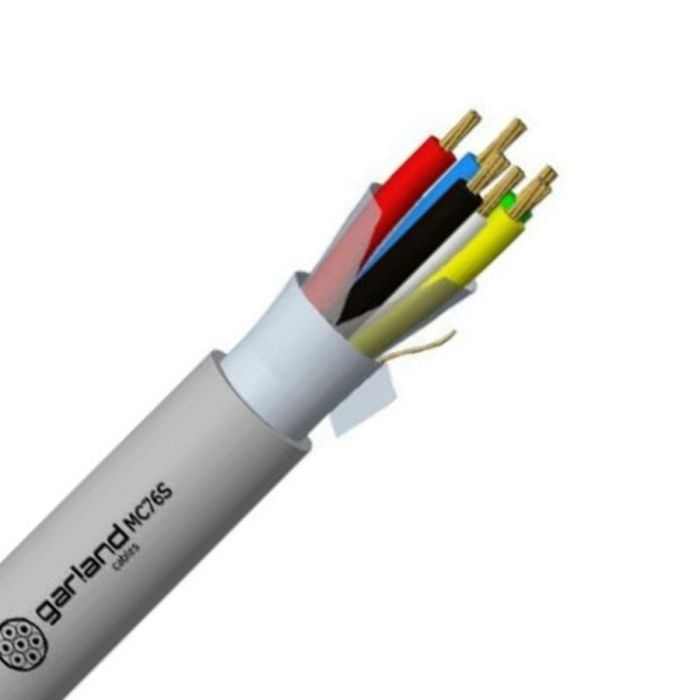

Garland 0.22mm 6 Core Grey Data Cable Overall Screened PVC/PVC
Garland 0.22mm 6 Core Grey Data Cable Overall Screened PVC/PVC
In stock
SKU
GARMC76S100
Data Cable, 0.22 mm, Tinned Annealed Copper, 6 Core, 7/0.2 mm Strands, Overall Screened Screen, 5.5 mm Overall Diameter, 55 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.7 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 92 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 95.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Blue/Red/Black/Yellow/Green Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/CA S008 EIA-RS232 AS 1049 UL 758
| Brand | Garland |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MC76S100 |
| Conductor Resistance | 95.3 Ohm/km |
| Bend Radius | Static 55 mm |
| Conductor Size | 0.22 mm |
| Core Colours | White/Blue/Red/Black/Yellow/Green |
| Conductor Type | Tinned Annealed Copper |
| Elongation | Insulation: >100% Outer Sheath: >100% |
| Insulation Material | PVC |
| Insulation Resistance | 50 MOhm/km |
| Number of Cores | 6 Core |
| Insulation Thickness | 0.28 mm |
| Overall Diameter | 5.5 mm |
| Product Type | Data Cable |
| Pulling Tension | 92 N |
| Screen Format | Overall Screened |
| Screen Coverage | 100% |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Grey |
| Sheath Thickness | 0.7 mm |
| Sheath Material | PVC |
| Standards | AS/CA S008 EIA-RS232 AS 1049 UL 758 |
| Stranding | 7/0.2 mm |
| Temperature | -15 to 70 deg C |
| Tensile Strength | Before Aging: >12 MPa |
Description
Data Cable, 0.22 mm, Tinned Annealed Copper, 6 Core, 7/0.2 mm Strands, Overall Screened Screen, 5.5 mm Overall Diameter, 55 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.7 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 92 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 95.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Blue/Red/Black/Yellow/Green Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/CA S008 EIA-RS232 AS 1049 UL 758
