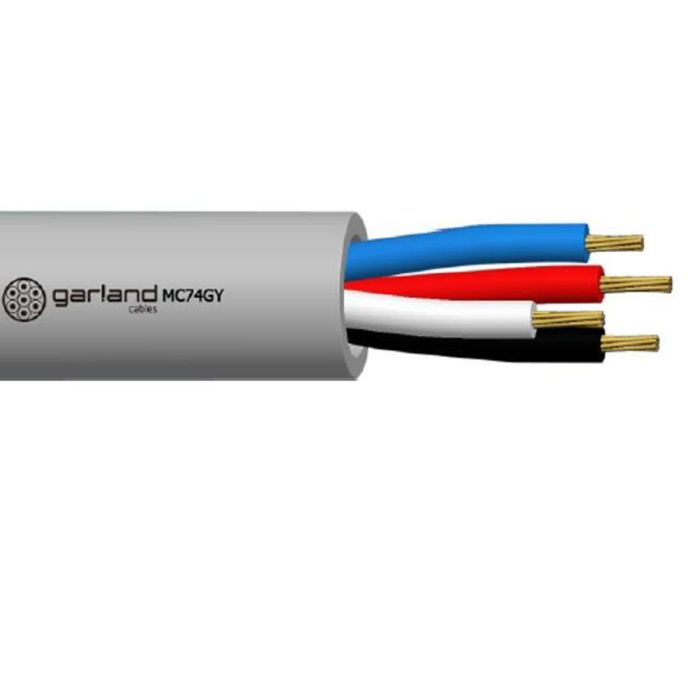

Garland Pro Series Security Cable Unscreened 4 Core 0.22mm 7/0.2mm PVC/PVC Grey
Garland Pro Series Security Cable Unscreened 4 Core 0.22mm 7/0.2mm PVC/PVC Grey
In stock
SKU
GARMC74GY100
Security Cable, Unscreened, 4 Core, 0.22 mm, Tinned Copper, 7/0.2 mm Strands, 3.6 mm Overall Diameter, Bend Radius: Static: - 36 mm, 0.28 mm Insulation Thickness, 0.36 mm Sheath Thickness, Elongation: Insulation - >100%, Outer Sheath - >100%, 56 N Pulling Tension, Before Aging - >12 MPa Tensile Strength, Conductor Resistance: 93.3 Ohm/km, Insulation Resistance: 50 MOhm/km, PVC Insulation, PVC Sheath, White Blue Red Black Cores, Grey RAL 7046 Sheath, -15 to 70 deg C, AS/ACIF S008, BS4737-3.30, AS 1049
| Brand | Garland |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MC74GY100 |
| Bend Radius | Static: 36 mm |
| Conductor Resistance | 93.3 Ohm/km |
| Conductor Size | 0.22 mm |
| Conductor Type | Tinned Annealed Copper |
| Elongation | Insulation: >100% Outer Sheath: >100% |
| Insulation Material | PVC |
| Insulation Resistance | 50 MOhm/km |
| Insulation Thickness | 0.28 mm |
| Number of Cores | 4 Core |
| Overall Diameter | 3.6 mm |
| Product Type | Security Cable |
| Pulling Tension | 56 N |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Sheath Thickness | 0.36 mm |
| Standards | AS/ACIF S008 BS3737-3.30 AS 1049 |
| Stranding | 7/0.2 mm |
| Temperature | -15 to 70 deg C |
| Tensile Strength | Before Aging: >12 MPa |
Description
Security Cable, Unscreened, 4 Core, 0.22 mm, Tinned Copper, 7/0.2 mm Strands, 3.6 mm Overall Diameter, Bend Radius: Static: - 36 mm, 0.28 mm Insulation Thickness, 0.36 mm Sheath Thickness, Elongation: Insulation - >100%, Outer Sheath - >100%, 56 N Pulling Tension, Before Aging - >12 MPa Tensile Strength, Conductor Resistance: 93.3 Ohm/km, Insulation Resistance: 50 MOhm/km, PVC Insulation, PVC Sheath, White Blue Red Black Cores, Grey RAL 7046 Sheath, -15 to 70 deg C, AS/ACIF S008, BS4737-3.30, AS 1049
