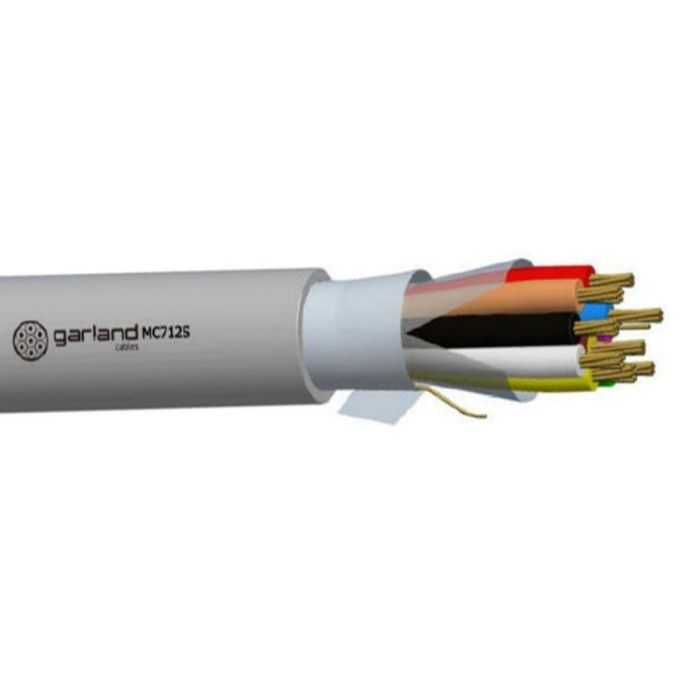

Garland 0.22mm 12 Core Grey Data Cable Overall Screened PVC/PVC
Garland 0.22mm 12 Core Grey Data Cable Overall Screened PVC/PVC
In stock
SKU
GARMC712S500
Data Cable, 0.22 mm, Tinned Annealed Copper, 12 Core, 7/0.2 mm Strands, Overall Screened Screen, 6.9 mm Overall Diameter, 69 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.8 mm Sheath Thickness, 184 N Pulling Tension, DC: 95.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Red/Blk/Ylw/Brown/Org/Pink/Grey/Blue/Violet/Grn/Light Brown Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/ACIF S008 EIA-RS232 UL 758
| Brand | Garland |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MC712S500 |
| Bend Radius | Static 69 mm |
| Conductor Resistance | DC: 95.3 Ohm/km |
| Conductor Type | Tinned Annealed Copper |
| Core Colours | White/Red/Blk/Ylw/Brown/Org/Pink/Grey/Blue/Violet/Grn/Light Brown |
| Conductor Size | 0.22 mm |
| Insulation Material | PVC |
| Insulation Resistance | 50 MOhm/km |
| Insulation Thickness | 0.28 mm |
| Number of Cores | 12 Core |
| Overall Diameter | 6.9 mm |
| Product Type | Data Cable |
| Screen Coverage | 100% |
| Pulling Tension | 184 N |
| Sheath Colour | Grey |
| Screen Material | Aluminium/Polyester Tape |
| Screen Format | Overall Screened |
| Sheath Material | PVC |
| Standards | AS/ACIF S008 EIA-RS232 UL 758 |
| Sheath Thickness | 0.8 mm |
| Stranding | 7/0.2 mm |
| Temperature | -15 to 70 deg C |
Description
Data Cable, 0.22 mm, Tinned Annealed Copper, 12 Core, 7/0.2 mm Strands, Overall Screened Screen, 6.9 mm Overall Diameter, 69 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.8 mm Sheath Thickness, 184 N Pulling Tension, DC: 95.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Red/Blk/Ylw/Brown/Org/Pink/Grey/Blue/Violet/Grn/Light Brown Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/ACIF S008 EIA-RS232 UL 758
