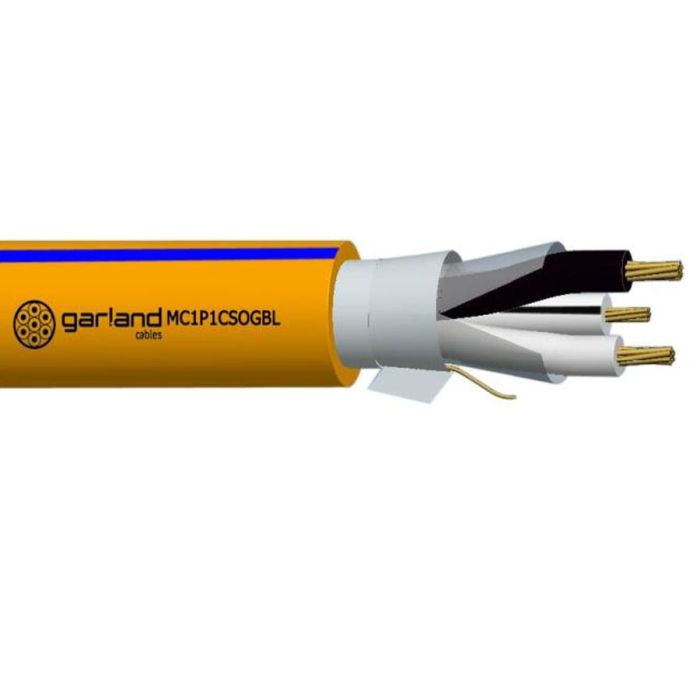

Garland 0.22mm 1 Core 1 Pair Orange/Blue Trace Security Cable Polyethylene/PVC
Garland 0.22mm 1 Core 1 Pair Orange/Blue Trace Security Cable Polyethylene/PVC
In stock
SKU
GARMC1P1CSOGBL500
Security Cable, 0.22 mm, Tinned Annealed Copper, 1 Core, 1 Pair, 7/0.2 mm Strands, Overall Screened Screen, 4.5 mm Overall Diameter, 45 mm Static Bend Radius, 0.3 mm Insulation Thickness, 0.8 mm Sheath Thickness, Insulation: >300% Outer Sheath: >100% Elongation, 46 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 95.3 Ohm/km Conductor Resistance, 1000 Mohm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Black Trace Core, Polyethylene Insulation, PVC Sheath, Orange/Blue Trace Sheath, -15 to 70 deg C, AS/CA S008 AS 1049
| Brand | Garland |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MC1P1CSOGBL500 |
| Bend Radius | Static 45 mm |
| Conductor Resistance | 95.3 Ohm/km |
| Conductor Size | 0.22 mm |
| Conductor Type | Tinned Annealed Copper |
| Core Colours | White/Black Trace |
| Elongation | Insulation: >300% Outer Sheath: >100% |
| Insulation Material | Polyethylene |
| Insulation Resistance | 1000 Mohm/km |
| Insulation Thickness | 0.3 mm |
| Number of Cores | 1 Core |
| Number of Pairs | 1 Pair |
| Overall Diameter | 4.5 mm |
| Product Type | Security Cable |
| Screen Coverage | 100% |
| Pulling Tension | 46 N |
| Screen Format | Overall Screened |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Orange/Blue Trace |
| Sheath Material | PVC |
| Sheath Thickness | 0.8 mm |
| Standards | AS/CA S008 AS 1049 |
| Stranding | 7/0.2 mm |
| Temperature | -15 to 70 deg C |
| Tensile Strength | Before Aging: >12 MPa |
Description
Security Cable, 0.22 mm, Tinned Annealed Copper, 1 Core, 1 Pair, 7/0.2 mm Strands, Overall Screened Screen, 4.5 mm Overall Diameter, 45 mm Static Bend Radius, 0.3 mm Insulation Thickness, 0.8 mm Sheath Thickness, Insulation: >300% Outer Sheath: >100% Elongation, 46 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 95.3 Ohm/km Conductor Resistance, 1000 Mohm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Black Trace Core, Polyethylene Insulation, PVC Sheath, Orange/Blue Trace Sheath, -15 to 70 deg C, AS/CA S008 AS 1049
