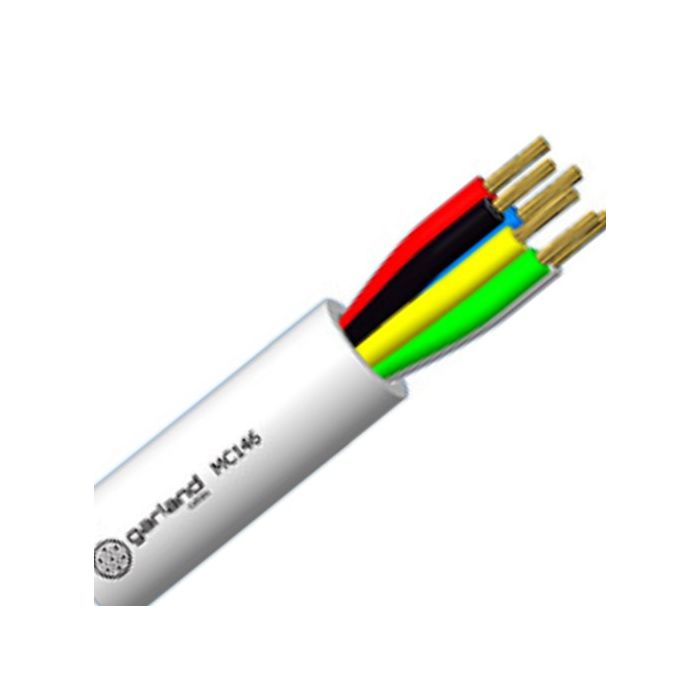

Garland 21 AWG 6 Core White Security Cable PVC/PVC
Garland 21 AWG 6 Core White Security Cable PVC/PVC
In stock
SKU
GARMC146WH250BW
Security Cable, 21 AWG, Annealed Copper, 6 Core, 14/0.2 mm Strands, 6.1 mm Overall Diameter, 60 mm Static Bend Radius, 0.4 mm Insulation Thickness, 0.6 mm Sheath Thickness, 160 N Pulling Tension, V-75 PVC Insulation, 4V-75 PVC Sheath, White Sheath, -15 to 75 deg C, AS/ACIF S008 BS3737-3.30 AS 1049
| Brand | Garland |
|---|---|
| Standard Pack Size | 250 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MC146WH250BW |
| Bend Radius | Static 60 mm |
| Conductor Size | 21 AWG |
| Conductor Type | Annealed Copper |
| Insulation Material | V-75 PVC |
| Insulation Thickness | 0.4 mm |
| Number of Cores | 6 Core |
| Overall Diameter | 6.1 mm |
| Product Type | Security Cable |
| Pulling Tension | 160 N |
| Sheath Colour | White |
| Sheath Material | 4V-75 PVC |
| Sheath Thickness | 0.6 mm |
| Standards | AS/ACIF S008 BS3737-3.30 AS 1049 |
| Stranding | 14/0.2 mm |
| Temperature | -15 to 75 deg C |
Description
Security Cable, 21 AWG, Annealed Copper, 6 Core, 14/0.2 mm Strands, 6.1 mm Overall Diameter, 60 mm Static Bend Radius, 0.4 mm Insulation Thickness, 0.6 mm Sheath Thickness, 160 N Pulling Tension, V-75 PVC Insulation, 4V-75 PVC Sheath, White Sheath, -15 to 75 deg C, AS/ACIF S008 BS3737-3.30 AS 1049
