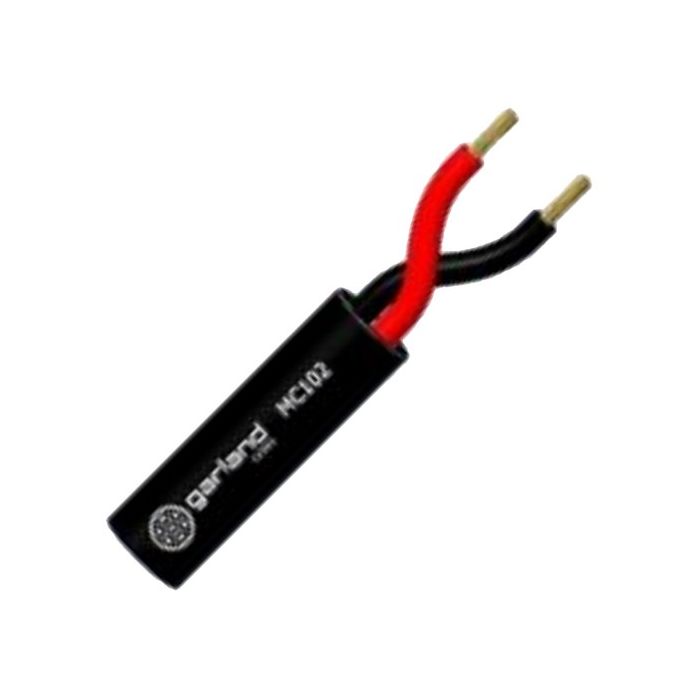

Garland Security Cable Unscreened 2 Core 0.5mm 10/0.25mm PVC/PVC Black
Garland Security Cable Unscreened 2 Core 0.5mm 10/0.25mm PVC/PVC Black
In stock
SKU
GARMC102500
Security Cable, Unscreened, 2 Core, 0.5 mm, Plain Annealed Copper, 10/0.25 mm Strands, 4.7 mm Overall Diameter, Bend Radius: Static: - 47 mm, 0.35 mm Insulation Thickness, 0.6 mm Sheath Thickness, Elongation: Insulation - >100%, Outer Sheath - >100%, 68 N Pulling Tension, Before Aging - >12 MPa Tensile Strength, Conductor Resistance: 36.6 Ohm/km, Insulation Resistance: 1000 MOhm/km, PVC Insulation, V-90HT PVC Sheath, Black Sheath, -15 to 90 deg C
| Brand | Garland |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MC102500 |
| Bend Radius | Static: 47 mm |
| Conductor Resistance | 36.6 Ohm/km |
| Conductor Size | 0.50 mm |
| Conductor Type | Annealed Copper |
| Elongation | Insulation: >100% Outer Sheath: >100% |
| Insulation Material | PVC |
| Insulation Resistance | 1000 MOhm/km |
| Insulation Thickness | 0.35 mm |
| Number of Cores | 2 Core |
| Overall Diameter | 4.7 mm |
| Product Type | Security Cable |
| Pulling Tension | 68 N |
| Sheath Colour | Black |
| Sheath Material | V-90HT PVC |
| Sheath Thickness | 0.6 mm |
| Stranding | 10/0.25 mm |
| Temperature | -15 to 90 deg C |
| Tensile Strength | Before Aging: >12 MPa |
Description
Security Cable, Unscreened, 2 Core, 0.5 mm, Plain Annealed Copper, 10/0.25 mm Strands, 4.7 mm Overall Diameter, Bend Radius: Static: - 47 mm, 0.35 mm Insulation Thickness, 0.6 mm Sheath Thickness, Elongation: Insulation - >100%, Outer Sheath - >100%, 68 N Pulling Tension, Before Aging - >12 MPa Tensile Strength, Conductor Resistance: 36.6 Ohm/km, Insulation Resistance: 1000 MOhm/km, PVC Insulation, V-90HT PVC Sheath, Black Sheath, -15 to 90 deg C
