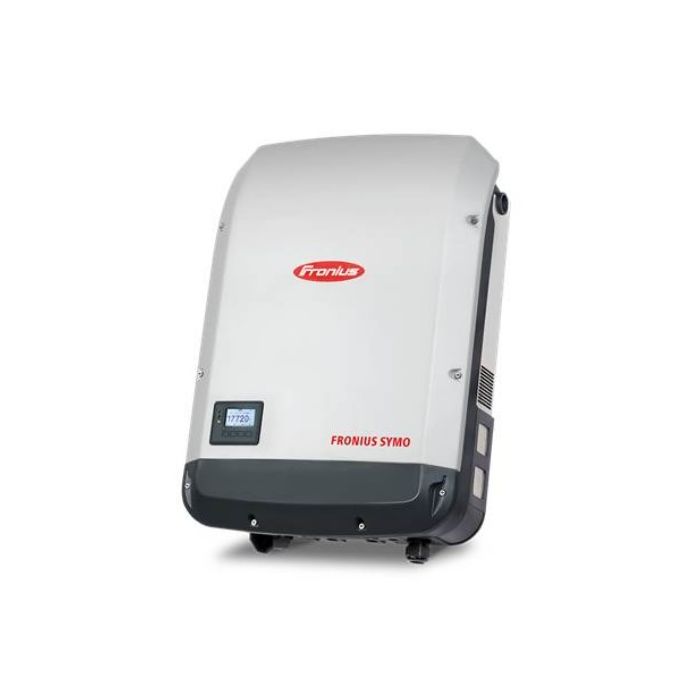

Fronius Symo Solar Inverter Transformerless 2MPPT Three Phase 20kW 27A
Fronius Symo Solar Inverter Transformerless 2MPPT Three Phase 20kW 27A
In stock
SKU
FRNSYMO20.0-3-M
Solar Inverter Grid-connected, 3 Phase Phase, 200-1000 Volt DC Input, 600 Volt DC Nominal, 200-800 Volt DC MPPT Voltage Range, 200 Volt DC Start-up, 33-27 Amp DC Max. Input, 2 MPPTs, 20 kW AC Output, 20 kVA AC Max. Apparent, 50/60 Hz, 28.9 Amp AC Output, 0-1 Inductive/Capacitive Power Factor, 0.981 Efficiency, 0.979 European Weighted Efficiency, 0.99 MPPT Efficiency, Transformerless, WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485, Regulated Air Cooling, IP66, -40 to 60 deg C
| Brand | Fronius |
|---|---|
| Standard Pack Size | 8 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | SYMO20.0-3-M |
| AC Operating Frequency | 50/60 Hz |
| AC Max. Apparent Power | 20 kVA |
| AC Output Current | 28.9 Amp |
| AC Output Power | 20 kW |
| Communication Port | WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485 |
| DC Input Voltage | 200-1000 Volt |
| DC Max. Input Current | 33-27 Amp |
| Cooling Method | Regulated Air |
| DC MPPT Voltage Range | 200-800 Volt |
| DC Nominal Voltage | 600 Volt |
| DC Start-up Voltage | 200 Volt |
| European Weighted Efficiency | 0.979 |
| IP Rating | IP66 |
| Efficiency | 0.981 |
| Number of MPPTs | 2 |
| MPPT Efficiency | 0.99 |
| Operating Temperature | -40 to 60 deg C |
| Phase | 3 Phase |
| Product Type | Inverters |
| Power Factor | 0-1 Inductive/Capacitive |
| Relative Humidity | 0-100% |
| Topology | Transformerless |
| Width | 510 mm |
Description
Solar Inverter Grid-connected, 3 Phase Phase, 200-1000 Volt DC Input, 600 Volt DC Nominal, 200-800 Volt DC MPPT Voltage Range, 200 Volt DC Start-up, 33-27 Amp DC Max. Input, 2 MPPTs, 20 kW AC Output, 20 kVA AC Max. Apparent, 50/60 Hz, 28.9 Amp AC Output, 0-1 Inductive/Capacitive Power Factor, 0.981 Efficiency, 0.979 European Weighted Efficiency, 0.99 MPPT Efficiency, Transformerless, WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485, Regulated Air Cooling, IP66, -40 to 60 deg C
