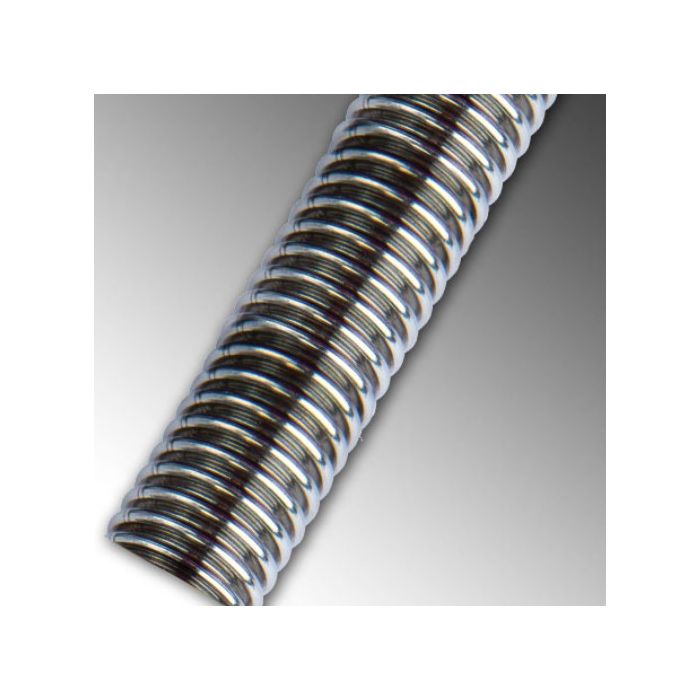

Flexicon S-Line Flexible Conduit Metal Annular Corrugated 20mm 25M 316L Stainless Steel

Name: Flex Conduit Metal Annular Corrugated 20mm 25M 316LSS
SKU: FLXFSS20-25M
Availability: InStock

In stock

SKU

FLXFSS20-25M

Flexible Conduit, Metal, Annular Corrugated, 20 mm, 16.2 mm ID, 21.6 mm OD, 25 mtr, 45 mm Bend Radius, IP68, 316L Stainless Steel, -50 to 135 deg C

More Information
Features	Inherent Low Fire hazard performance with superior Ingress Protection (IP68) and excellent corrosion resistance Typical applications metro rail stations and tunnels High mechanical strength Pull off strength 100kg (20mm) Excellent corrosion resistance Provides EMC screening Offers Anti-static properties Oil resistant UV resistant
Brand	Flexicon
Range Name	S-Line
Standard Pack Size	25
UNSPSC Class	39131700
UOM	MTR
Vendor Product	FSS20-25M
Inside Diameter	16.2mm
Bend Radius	45mm
Conduit Size	20 mm
IP Rating	IP68
Length	25mtr
Outside Diameter	21.6mm
Product Type	Corrugated Conduit
Temperature	-50 to 135 deg C

Description

Flexible Conduit, Metal, Annular Corrugated, 20 mm, 16.2 mm ID, 21.6 mm OD, 25 mtr, 45 mm Bend Radius, IP68, 316L Stainless Steel, -50 to 135 deg C
