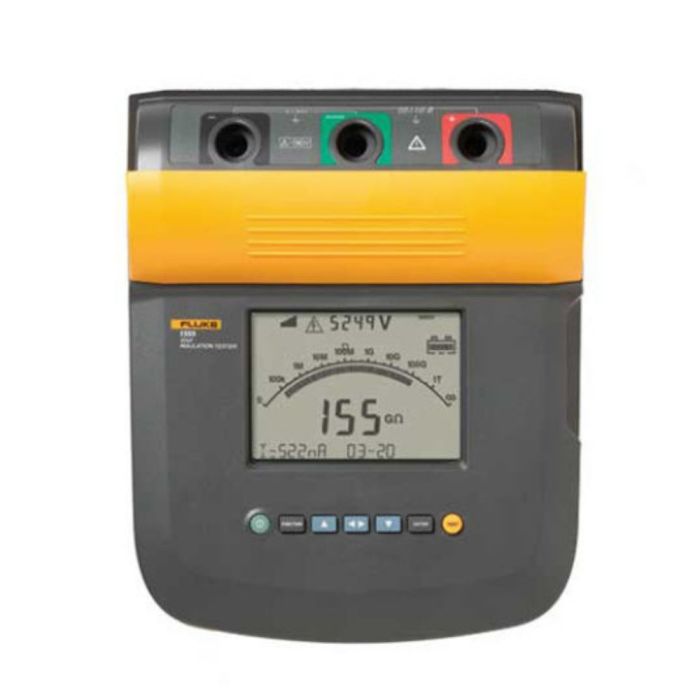

Digitalinsulation Tester, 250/500/1000/2500/5000/10000 Volt, 1 nA to 2 mA, 12 Volt Lead-Acid Rechargeable Battery, -20 to 50 deg C, 0.01 to 15 uF Range, 5%, 20% Accuracy, 269 x 277 x 160mm
Quickly configure, start and stop tests on the 1555 remotely, a safe distance away from any operating, energized equipment, using Fluke Connect and a smart phone
Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
Report creation using Fluke Connect desktop saves time and makes test results easier to understand
Fluke Connect saves test results to the cloud for analysis and preventive maintenance
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
Guard system eliminates the effect of surface leakage current on high-resistance measurements
Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
CAT III 1000 V, CAT IV 600 V safety rating
Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
Brand
Fluke
Standard Pack Size
1
UNSPSC Class
41113600
UOM
EA
Vendor Product
FLU1555
Dimensions
269 x 277 x 160 mm
Product Type
simple
Power Supply
12 Volt Lead-Acid Rechargeable
Voltage
250-500-1000-2500-5000-10000 Volt
Temperature
-20 to 50 deg C
Description
Digitalinsulation Tester, 250/500/1000/2500/5000/10000 Volt, 1 nA to 2 mA, 12 Volt Lead-Acid Rechargeable Battery, -20 to 50 deg C, 0.01 to 15 uF Range, 5%, 20% Accuracy, 269 x 277 x 160mm
