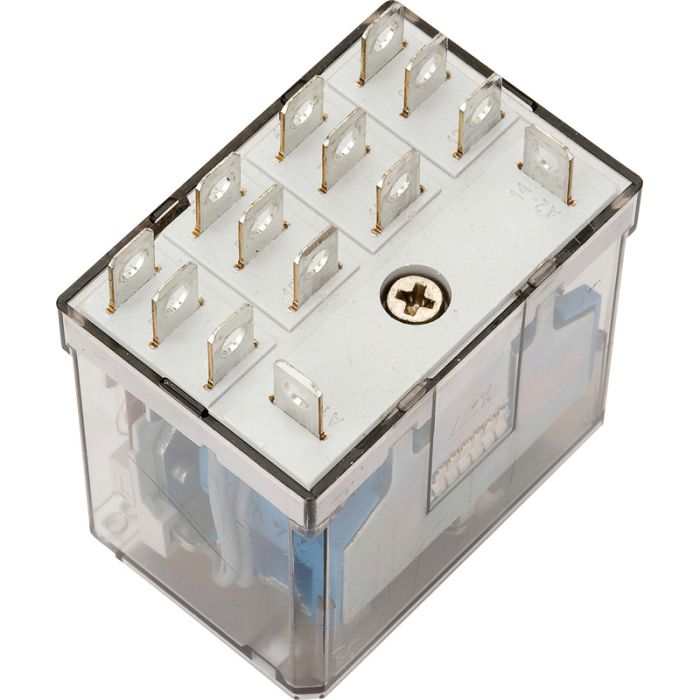

Finder Miniature Power Relay Plug-In 4P 4CO 12A 24VDC 14 Pin Flat
Finder Miniature Power Relay Plug-In 4P 4CO 12A 24VDC 14 Pin Flat
In stock
SKU
FID56.3424VDC
Miniature Power Relay, 250 Volt AC, 24 Volt DC Coil Voltage, 12 Amp, 0.55 kW, 14 Pin Flat, 4 Pole, 4 Changeover Configuration, 490 Ohm, 4 ms Breaking/10 Making Operating Time, 100000 Cycles, Plug-In Mounting, Silver Nickel (Ag/Ni) Contact, -40 to 70 deg C, 27.7 mm Height, 40.8 mm Width, 37.1 mm Depth
| Features |
|
|---|---|
| Brand | Finder |
| Range Name | Series 56 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | 563424VDC |
| Contact Configuration | 4 Changeover |
| Depth | 37.1 mm |
| Height | 27.7 mm |
| Current | 12 Amp |
| Mounting Method | Plug-In |
| Contact Material | Silver Nickel (Ag/Ni) |
| Number Of Poles | 4 Pole |
| Operating Coil Voltage | 24 Volt DC |
| Operating Cycles | 100000 Cycles |
| Pin Configuration | 14 Pin Flat |
| Operating Time | 4 ms Breaking/10 Making |
| Power Rating | 0.55 kW |
| Resistance | 490 Ohm |
| Temperature | -40 to 70 deg C |
| Voltage | 250 Volt AC |
| Product Type | Power Relays |
| Width | 40.8 mm |
Description
Miniature Power Relay, 250 Volt AC, 24 Volt DC Coil Voltage, 12 Amp, 0.55 kW, 14 Pin Flat, 4 Pole, 4 Changeover Configuration, 490 Ohm, 4 ms Breaking/10 Making Operating Time, 100000 Cycles, Plug-In Mounting, Silver Nickel (Ag/Ni) Contact, -40 to 70 deg C, 27.7 mm Height, 40.8 mm Width, 37.1 mm Depth
