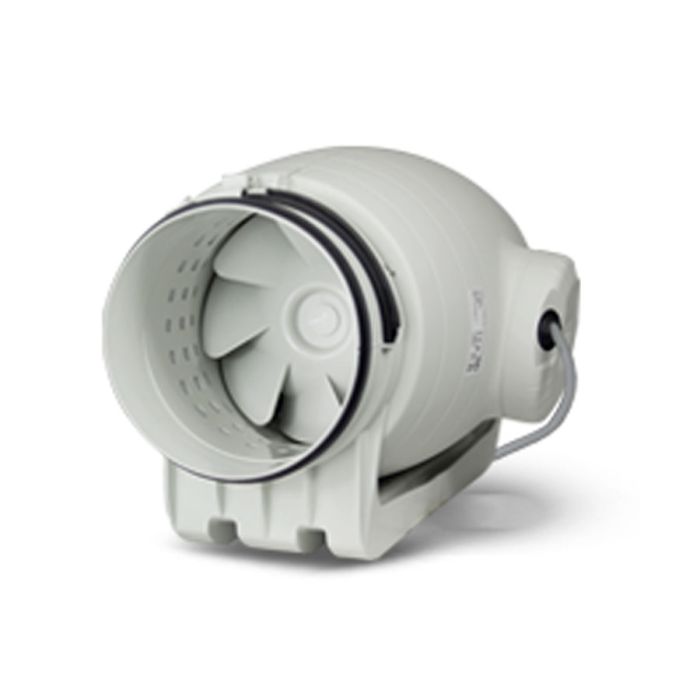

Fantech In-Line Fan 230 Volt 0.1-0.13 Amp 462mm Cut-Out 34-33dBA at 3m
Fantech In-Line Fan 230 Volt 0.1-0.13 Amp 462mm Cut-Out 34-33dBA at 3m
In stock
SKU
FANTD-350/125SIL
The TD Silent Series of low-profile mixed-flow in-line fans incorporates a break-through in noise reduction resulting in units that operate very quietly. The low noise levels are achieved through the technically advanced design of the internal construction, which does not impede on the air flow performance of the fan. There are 6 models in the series, ranging from 100 to 315mm diameter spigot sizes.
| Features |
|
|---|---|
| Brand | Fantech |
| Standard Pack Size | 1 |
| UNSPSC Class | 40101600 |
| UOM | EA |
| Vendor Product | TD-350/125SIL |
| Duct Size | 125 mm |
| Cut-Out Size | 462 mm |
| Fan Speed | 32-38 rps |
| Frequency | 50 Hz |
| IP Rating | IP44 |
| Height | 223 mm |
| Material | Injection Moulded Plastic/Polypropylene |
| Length | 462 mm |
| Mounting Method | Ceiling |
| Phase | 1 Phase |
| Motor Type | Squirrel Cage Induction |
| Noise Level | 34-33 dBA at 3 mtr |
| Product Type | Exhaust fans |
| Speed Setting | 2 |
| Temperature | 40 deg C |
| Voltage | 230 Volt |
| Width | 223 mm |
| Wattage | 0.022-0.03 kW |
Description
The TD Silent Series of low-profile mixed-flow in-line fans incorporates a break-through in noise reduction resulting in units that operate very quietly. The low noise levels are achieved through the technically advanced design of the internal construction, which does not impede on the air flow performance of the fan. There are 6 models in the series, ranging from 100 to 315mm diameter spigot sizes.
