Fantech Ceiling Mount Header Box Fan 150mm 240V 0.27 Amp 0.06 kW 349 cu-m/hr 37 dBA at 3m 16 rps

Fantech Ceiling Mount Header Box Fan 150mm 240V 0.27 Amp 0.06 kW 349 cu-m/hr 37 dBA at 3m 16 rps

In stock
SKU
FANRESPF150T
Add to Compare

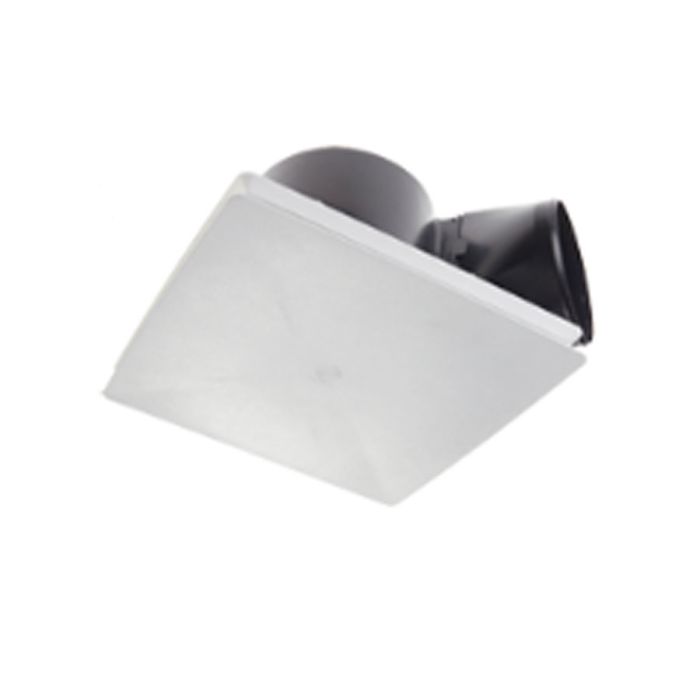

main product photo
Exhaust Fan Header Box Ceiling, 150 mm, 240 Volt, 0.27 Amp, 0.06 kW, 50 Hz, 1 Phase Phase, 349 cu-m/hr, 97 l/sec, 37 dBA at 3 mtr, 16 rps, Squirrel Cage Induction Motor, Ceiling Mounting, 40 deg C, 197 mm Height
More Information
More Information
Features
  • Advanced impeller and housing design provides powerful air flow and minimises noise
  • High strength swing clips make installation easy
  • Low resistance non-return backdraft damper maximises air flow performance
  • Easy to remove diffuser makes cleaning simple
  • Can be retrofitted into a standard 10 in round fan cut out
  • Fitted plug and lead simplifies installation
  • Square diffuser can be easily rotated to align with walls
Brand Fantech
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product RESPF150T
Air Flow Cubic Meters per Hour 349 cu-m/hr
Current 0.27 Amp
Air Flow Litres per Second 97 l/sec
Fan Size 150 mm
Height 197 mm
Frequency 50 Hz
Mounting Method Ceiling
Motor Type Squirrel Cage Induction
Phase 1 Phase
Product Type Ceiling Fans
Sound Level 37 dBA at 3 mtr
Speed 16 rps
Temperature 40 deg C
Wattage 0.06 kW
Voltage 240 Volt

Description

Exhaust Fan Header Box Ceiling, 150 mm, 240 Volt, 0.27 Amp, 0.06 kW, 50 Hz, 1 Phase Phase, 349 cu-m/hr, 97 l/sec, 37 dBA at 3 mtr, 16 rps, Squirrel Cage Induction Motor, Ceiling Mounting, 40 deg C, 197 mm Height
