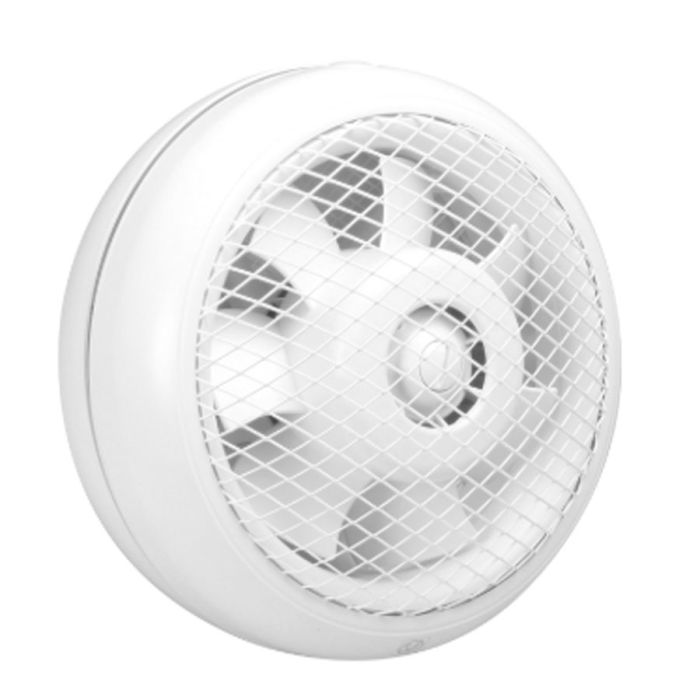

FantechTrade Exhaust Fan 180mm 230 Volt 0.15 Amp 0.396 cu-m/hr 213-225mm Cut-Out 33dBA at 3m White

Name: Ceiling/Wall Exhaust Fan 180mm 230V White 0.396cu-m/hr
SKU: FANHCM-180N
Availability: InStock

In stock

SKU

FANHCM-180N

The HCM wall/window mounted fan is suitable for domestic kitchens and bathrooms. It features powerful air flow performance and quiet operation.

More Information
Features	Available in 3 sizes for 230 V supply All models incorporate air operated shutters Impeller blades are sickle shaped for high performance Quiet operation IPX4 protection rating Weather cap optional for protection against harsh external conditions Suitable for mounting on vertical plain only For wall mounting, a kit of threaded wall rods and sleeves can be supplied as an optional extra caters for walls ranging in thickness from 25 to 300mm
Brand	FantechTrade
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	HCM-180N
Air Flow Litres per Second	0.11 l/sec
Air Flow Cubic Meters per Hour	0.396 cu-m/hr
Colour	White
Cut-Out Size	213-225 mm
Current	0.15 Amp
Duct Size	180 mm
Fan Size	180 mm
Fan Speed	33 rps
Frequency	50 Hz
IP Rating	IPX4
Length	255 mm
Material	Plastic
Motor Type	Squirrel Cage/Capacitor Run/Class B
Mounting Method	Ceiling/Wall
Noise Level	33 dBA at 3 mtr
Phase	1 Phase
Product Type	Exhaust fans
Temperature	40 deg C
Voltage	230 Volt
Wattage	25 Watt
Width	86 mm

Description

The HCM wall/window mounted fan is suitable for domestic kitchens and bathrooms. It features powerful air flow performance and quiet operation.
