Low Voltage Insulator 1000VAC/1500VDC Glass Fibre Reinforced Polyamide For Busbar Systems/Switchboards/Motor Control

Low Voltage Insulator 1000VAC/1500VDC Glass Fibre Reinforced Polyamide For Busbar Systems/Switchboards/Motor Control

In stock
SKU
ERI548620
Add to Compare

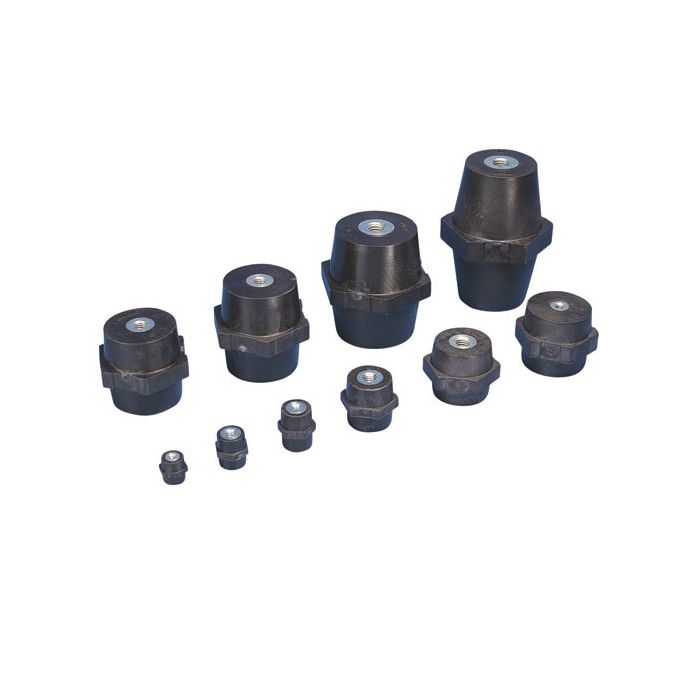

main product photo
Low Voltage Insulator, For Use With: Busbar Systems/Switchboards/Motor Control Centres, Glass Fibre Reinforced Polyamide, Electro Galvanized, 70mm Height x 65mm W Hex x 75mm D, 1000VAC/1500VDC, M12x14 Thread, 52mm Dia
More Information
More Information
Features
  • Halogen free
  • High resistance to leakage current
  • Great stability of electrical and mechanical parameters
  • Fiberglass reinforced
  • UL Recognized in E125470 and evaluated for dielectric withstand rating of 1500 VAC/DC
Brand Erico
Standard Pack Size 1
UNSPSC Class 39122100
UOM EA
Vendor Product 548620
Finish Electro Galvanised
Material Glass Fibre Reinforced Polyamide
For Use With Busbar Systems/Switchboards/Motor Control Centres
Please Note 1000VAC/1500VDC/M12x14 Thread/52mm Dia
Product Type Line Hardware

Description

Low Voltage Insulator, For Use With: Busbar Systems/Switchboards/Motor Control Centres, Glass Fibre Reinforced Polyamide, Electro Galvanized, 70mm Height x 65mm W Hex x 75mm D, 1000VAC/1500VDC, M12x14 Thread, 52mm Dia
