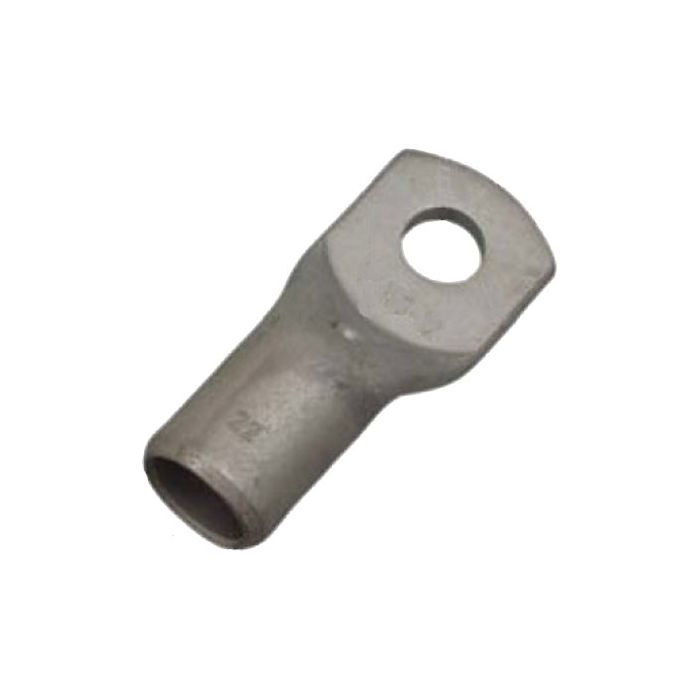

Elpress Crimp Lug Standard with Inspection Hole Copper 25mm M8 Stud 39mm OAL
Elpress Crimp Lug Standard with Inspection Hole Copper 25mm M8 Stud 39mm OAL
In stock
SKU
EPRKRF25-8
Crimp Lug, Standard with Inspection Hole Copper, 25 mm Conductor, M8 Stud, Standard Barrel, 39 mm Overall Length, 1 Hole, Electrolytic Copper Body, Copper Conductor, Tin Plated Finish, Inside Diameter: 8 mm, 18 mm Lug Length, 16 mm Lug Width, A/F Hex Die: 11 mm, Crimping Die: V600,V1300, with Inspection Hole
| Features |
|
|---|---|
| Brand | Elpress |
| Range Name | Standard Lugs Copper |
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | KRF25-8 |
| A-F Hex Die | 11 mm |
| Barrel Type | Standard |
| Body Material | Electrolytic Copper |
| Conductive Material | Copper |
| Conductor Size | 25 mm |
| Crimping Die | V600V1300 |
| Finish | Tin Plated |
| Inside Diameter | 8 mm |
| Lug Length | 18 mm |
| Lug Width | 16 mm |
| Number of Holes | 1 |
| Overall Length | 39 mm |
| Please Note | with Inspection Hole |
| Product Type | Lugs Standard Copper |
| Stud Size | M8 Stud |
Description
Crimp Lug, Standard with Inspection Hole Copper, 25 mm Conductor, M8 Stud, Standard Barrel, 39 mm Overall Length, 1 Hole, Electrolytic Copper Body, Copper Conductor, Tin Plated Finish, Inside Diameter: 8 mm, 18 mm Lug Length, 16 mm Lug Width, A/F Hex Die: 11 mm, Crimping Die: V600,V1300, with Inspection Hole
