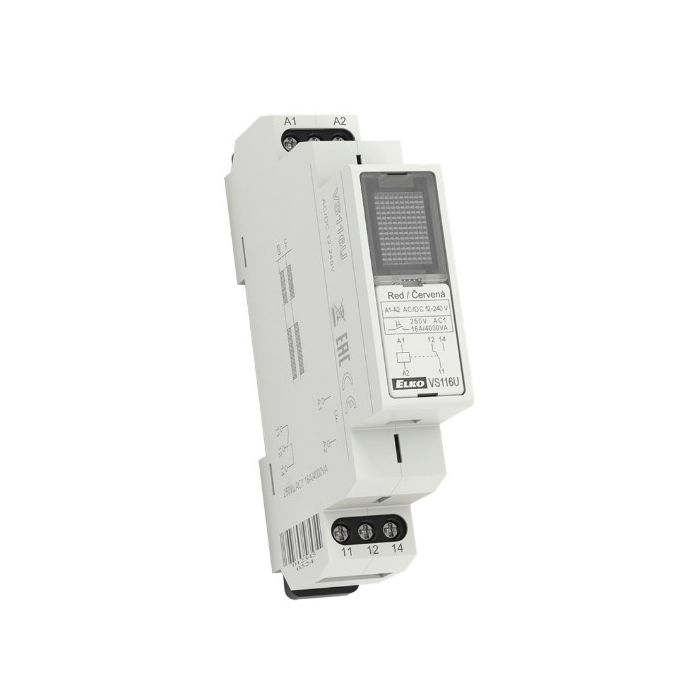

Elko Power Relay Module 1CO/SPDT 16A 12-240VAC/DC DIN Rail Mount
Elko Power Relay Module 1CO/SPDT 16A 12-240VAC/DC DIN Rail Mount
In stock
SKU
ELOVS116U
Power Relay Module, 12-240 Volt AC/DC, 16 Amp, 0.7-3 VA, 1CO/SPDT, Operating Time: 2 sec, 30000000 Cycles, IP30, DIN Rail Mount, -20 to 55 deg C, 90 mm Height, 64 mm Width, 17.6 mm Depth
| Features |
|
|---|---|
| Brand | Elko |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | VS116U |
| Contact Configuration | 1 Changeover/SPDT |
| Depth | 17.6 mm |
| Height | 90 mm |
| IP Rating | IP30 |
| Current | 16 Amp |
| Mounting Method | DIN Rail |
| Operating Coil Voltage | 12-240 Volt AC/DC |
| Operating Cycles | 30000000 Cycles |
| Operating Time | 2 sec |
| Power Rating | 0.7-3 VA |
| Temperature | -20 to 55 deg C |
| Product Type | Power Relays |
| Width | 64 mm |
Description
Power Relay Module, 12-240 Volt AC/DC, 16 Amp, 0.7-3 VA, 1CO/SPDT, Operating Time: 2 sec, 30000000 Cycles, IP30, DIN Rail Mount, -20 to 55 deg C, 90 mm Height, 64 mm Width, 17.6 mm Depth
