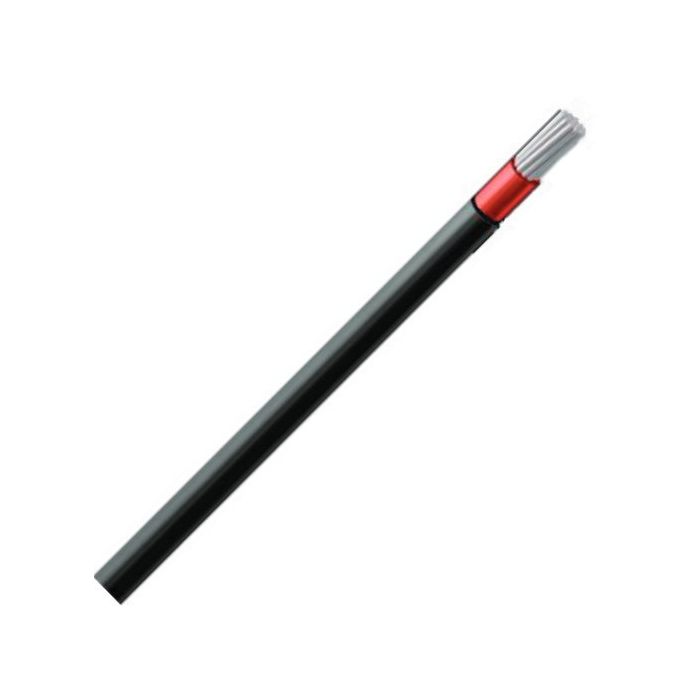

Elcon Cables SDI Solar Cable 4mm 0.6/1kVXLPE/XLPE Red
Elcon Cables SDI Solar Cable 4mm 0.6/1kVXLPE/XLPE Red
In stock
SKU
ELNCSO-4TUVRM
Solar Cable SDI, 0.9-1.8 kV DC/0.6-1 kV AC, 4 mm, 1 Core, 4.6 mm Overall Diameter, 18.4 mm Bend Radius, 5.09 mOhm/m at 20 deg C Conductor Resistance, Tinned Copper Conductor, Electron Beam XLPE Insulation, Electron Beam XLPE Sheath, Red Sheath, 120 deg C
| Features |
|
|---|---|
| Brand | Elcon Cables |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CSO-4TUVRM |
| Bend Radius | 18.4 mm |
| Conductor Resistance | 5.09 mOhm/m at 20 deg C |
| Conductor Material | Tinned Copper |
| Conductor Size | 4 mm |
| Insulation Material | Electron Beam XLPE |
| Number of Cores | 1 Core |
| Overall Diameter | 4.6 mm |
| Product Type | Solar Cable |
| Sheath Colour | Red |
| Sheath Material | Electron Beam XLPE |
| Temperature | 120 deg C |
| Voltage | 0.9-1.8 kV DC/0.6-1 kV AC |
Description
Solar Cable SDI, 0.9-1.8 kV DC/0.6-1 kV AC, 4 mm, 1 Core, 4.6 mm Overall Diameter, 18.4 mm Bend Radius, 5.09 mOhm/m at 20 deg C Conductor Resistance, Tinned Copper Conductor, Electron Beam XLPE Insulation, Electron Beam XLPE Sheath, Red Sheath, 120 deg C
