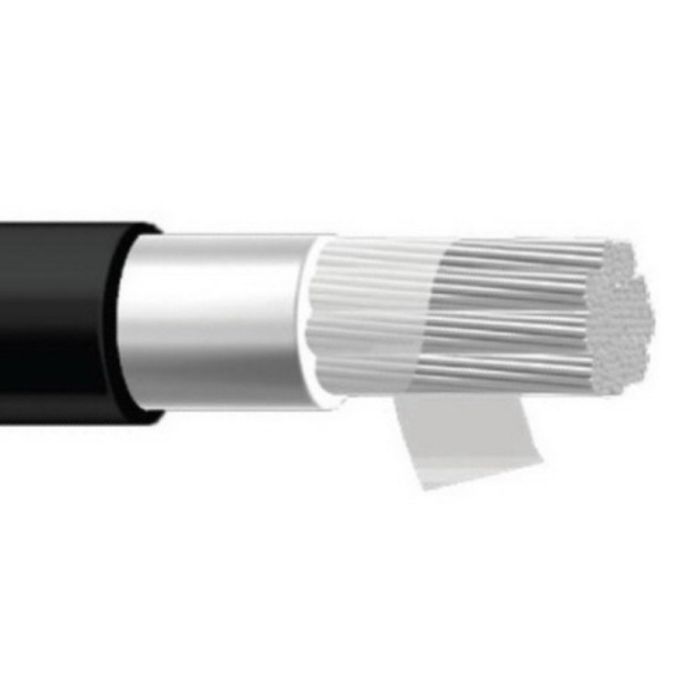

Elcon Cables 120mm SDI Cable 100mtr
Elcon Cables 120mm SDI Cable 100mtr
In stock
SKU
ELNCR-SDI120B3.3KVM
SDI Cable, 120 mm, Tinned Annealed Copper, 1.9-3.3 kV, 487 Amp, 1 Core, 926/0.41 mm Strands, 22.4 mm Overall Diameter, 100 mtr Length, Static 89.6 mm Flexible 112 mm Bend Radius, 2.2 mm Insulation Thickness, 1 mm Sheath Thickness, DC: 0.164 MOhm/m Insulation Resistance, 3GI3 Special EPR Compound Insulation, 5GM3 Rubber Sheath, Black Sheath, -25 to 110 deg C
| Features |
|
|---|---|
| Brand | Elcon Cables |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CR-SDI120B3.3KVM |
| Bend Radius | Static 89.6 mm/Flexible 112 mm |
| Conductor Size | 120 mm |
| Conductor Type | Tinned Annealed Copper |
| Current | 487 Amp |
| Insulation Material | 3GI3 Special EPR Compound |
| Insulation Resistance | DC: 0.164 MOhm/m |
| Insulation Thickness | 2.2 mm |
| Length | 100 mtr |
| Number of Cores | 1 Core |
| Overall Diameter | 22.4 mm |
| Product Type | SDI Cable |
| Sheath Colour | Black |
| Sheath Material | 5GM3 Rubber |
| Sheath Thickness | 1 mm |
| Stranding | 926/0.41 mm |
| Temperature | -25 to 110 deg C |
| Voltage | 1.9-3.3 kV |
Description
SDI Cable, 120 mm, Tinned Annealed Copper, 1.9-3.3 kV, 487 Amp, 1 Core, 926/0.41 mm Strands, 22.4 mm Overall Diameter, 100 mtr Length, Static 89.6 mm Flexible 112 mm Bend Radius, 2.2 mm Insulation Thickness, 1 mm Sheath Thickness, DC: 0.164 MOhm/m Insulation Resistance, 3GI3 Special EPR Compound Insulation, 5GM3 Rubber Sheath, Black Sheath, -25 to 110 deg C
