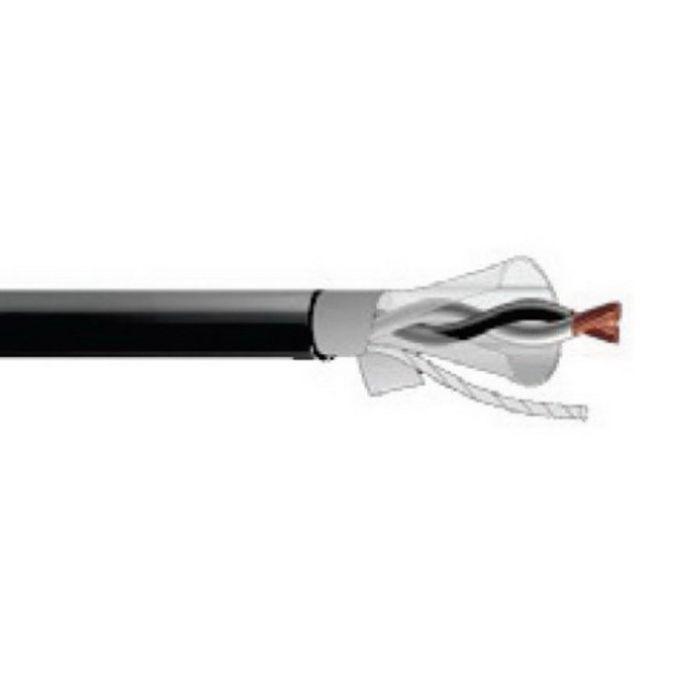

Elcon 1.5mm 24 Pair Instrumentation Cable Unarmoured Overall Screened
Elcon 1.5mm 24 Pair Instrumentation Cable Unarmoured Overall Screened
In stock
SKU
ELNCI-INST24P1.5BM
Instrumentation Cable, Unarmoured, 1.5 mm, Class 2 Annealed Copper, 100 Volt, 24 Pair, 7/0.5 mm Strands, Overall Screened Screen, 25 mm Overall Diameter, 150 mm Static/200 mm Flexible Bend Radius, 13.6 MOhm/m Insulation Resistance, 1.65 mm Insulation Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 90 deg C
| Brand | Elcon Cables |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CI-INST24P1.5BM |
| Conductor Size | 1.5 mm |
| Conductor Type | Class 2 Annealed Copper |
| Bend Radius | Static 150 mm/Flexible 200 mm |
| Core Colours | Black/White Numerals |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 1.65 mm |
| Insulation Resistance | 13.6 MOhm/m |
| Overall Diameter | 25 mm |
| Number of Pairs | 24 Pair |
| Product Type | Instrumentation Cable Unarmoured |
| Screen Coverage | 100% |
| Screen Format | Overall Screened |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Material | V-90 PVC |
| Sheath Colour | Black |
| Temperature | -25 to 90 deg C |
| Stranding | 7/0.5 mm |
| Voltage | 100 Volt |
Description
Instrumentation Cable, Unarmoured, 1.5 mm, Class 2 Annealed Copper, 100 Volt, 24 Pair, 7/0.5 mm Strands, Overall Screened Screen, 25 mm Overall Diameter, 150 mm Static/200 mm Flexible Bend Radius, 13.6 MOhm/m Insulation Resistance, 1.65 mm Insulation Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 90 deg C
