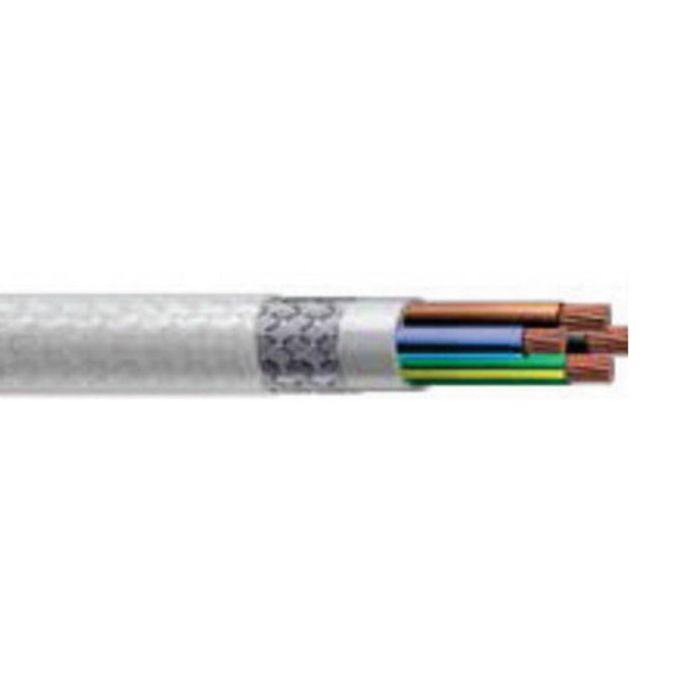

Elcon Flexible Cable VSD EMC Screened Heavy Duty 3 Core & 3 Earth 25 mm 0.6/1kV PVC/Tinned Copper Braid/PVC Clear
Elcon Flexible Cable VSD EMC Screened Heavy Duty 3 Core & 3 Earth 25 mm 0.6/1kV PVC/Tinned Copper Braid/PVC Clear
In stock
SKU
ELNCE-EMC4G25SEKM
VSD/EMC Cable, 25 mm, Class 5 Annealed Copper, 0.6-1 kV, 3 Core + 3 Earth, 25.5 mm Overall Diameter, 191.25 mm Bend Radius, 80% Screen Coverage, Tinned Copper Braid Screen, Brown/Black/Grey/Green/Yellow Core, V-75 PVC Insulation, 4V-75 PVC Sheath, Clear Sheath, 75 deg C, RoHS
| Features |
|
|---|---|
| Brand | Elcon Cables |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CE-EMC4G25SEKM |
| Bend Radius | 191.25 mm |
| Conductor Size | 25 mm |
| Conductor Type | Class 5 Annealed Copper |
| Core Colours | Black/Brown/Grey/Green/Yellow |
| Insulation Material | V-75 PVC |
| Number of Cores | 3 Core + 3 Earth |
| Overall Diameter | 25.5 mm |
| Product Type | VSD/EMC Cable |
| Screen Coverage | 80% |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Clear |
| Sheath Material | 4V-75 PVC |
| Standards | RoHS |
| Temperature | 75 deg C |
| Voltage | 0.6-1 kV |
Description
VSD/EMC Cable, 25 mm, Class 5 Annealed Copper, 0.6-1 kV, 3 Core + 3 Earth, 25.5 mm Overall Diameter, 191.25 mm Bend Radius, 80% Screen Coverage, Tinned Copper Braid Screen, Brown/Black/Grey/Green/Yellow Core, V-75 PVC Insulation, 4V-75 PVC Sheath, Clear Sheath, 75 deg C, RoHS
