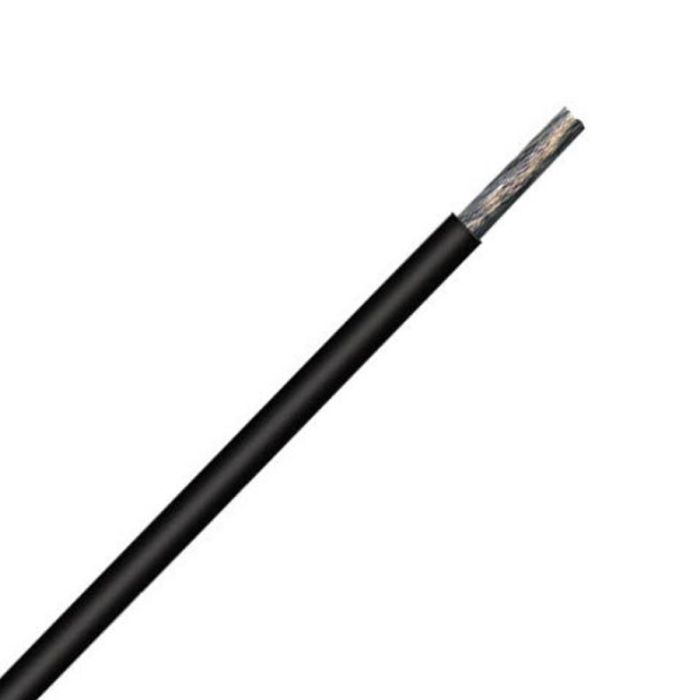

ElectCables 185mm SDI Cable 1mtr
ElectCables 185mm SDI Cable 1mtr
In stock
SKU
ELEA009048
Flexible Cable, Double Insulated, 1 Core, 185 mm, Class 5 Stranded Tinned Copper, 3.3 kV, 644 Amp, 17.5 mm Nominal Diameter, 26.7 mm Overall Diameter, Bend Radius: Static - 106.8 mm Flexible - 133.5 mm, Conductor Resistance: 0.108 Ohm/km, Special EPR Compound Insulation, 5GM3 Rubber Sheath, Black Sheath, Static - -35 to 110 deg C, Flexble: -25 to 110 deg C, AS/NZS 1125
| Features |
|
|---|---|
| Brand | ElectCables |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | A009048 |
Description
Flexible Cable, Double Insulated, 1 Core, 185 mm, Class 5 Stranded Tinned Copper, 3.3 kV, 644 Amp, 17.5 mm Nominal Diameter, 26.7 mm Overall Diameter, Bend Radius: Static - 106.8 mm Flexible - 133.5 mm, Conductor Resistance: 0.108 Ohm/km, Special EPR Compound Insulation, 5GM3 Rubber Sheath, Black Sheath, Static - -35 to 110 deg C, Flexble: -25 to 110 deg C, AS/NZS 1125
