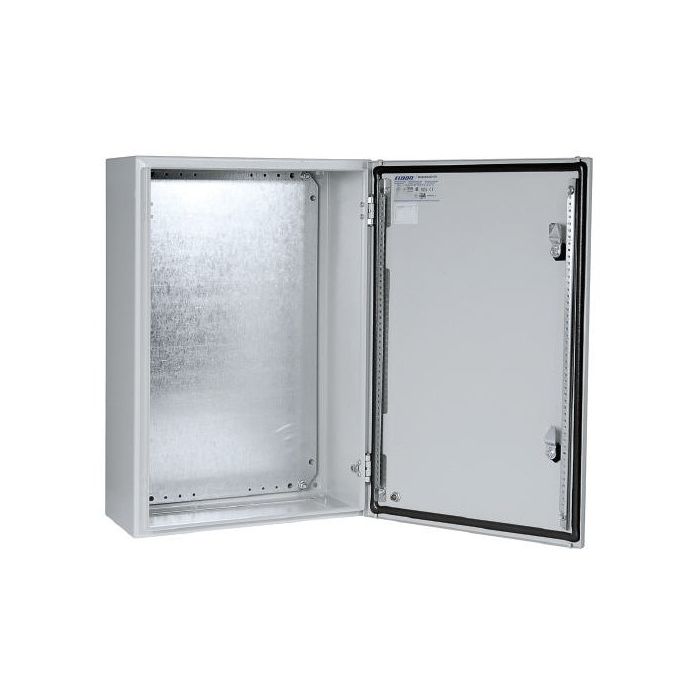

Eldon Enclosure Single Door General Purpose Industrial RAL 7035 Light Grey IP66 Mild Steel 600 Wx210 Dx400 H mm

Eldon Enclosure Single Door General Purpose Industrial RAL 7035 Light Grey IP66 Mild Steel 600 Wx210 Dx400 H mm

In stock
SKU
ELDMAS0406021R5
Add to Compare
main product photo
Enclosure Single Door General Purpose Industrial, 1 Door, Wall Mount, IP66, NEMA 4X, 12, 13, Mild Steel Housing, Mild Steel Door, Galvanized Steel Mounting Plate, FIP Polyurethane Gasket, RAL 7035 Light Grey, Powder Coated, 400 mm Height, 600 mm Width, 210 mm Depth, Please Note: Indoor Use
More Information
More Information
Features
  • Over 50 stocked sizes ensuring you have a high quality product ready for any situation in exactly the right size
  • IP66 (MAS)/IP55 (MAD) and IK10 protection with fully folded and seam welded mild steel contruction providing the highest protection for your internal components, for a range of indoor applications (NOTE-Optional glazed door models are IP55/IK08)
  • Wall fixing holes are pressed out 2mm allowing for the enclosure to lay on its back with no damage to the rear
  • Strengthened over folded front frame serves as a gutter to keep liquids away from the polyurethane gasket
  • Concealed hinges with captive hinge pins provide 130 degree opening and clean smooth lines, plus easy removal for maintenance and extra resistance to vibration
  • Gland plate installed as standard towards the rear of the enclosure to make for easy wiring
  • Comes with galvanised mounting plate as standard with gland plate opening same width as mounting plate for easy installation. Mounting plate is marked at 10mm intervals for easy horizontal positioning of equipment
  • Reversible door allows for flexibility in installation with the same enclosure able to be used in double the applications
  • A large range of custom locking options available to replace the standard 3mm double-bit lock
Brand Eldon
Range Name MAS Series
Standard Pack Size 1
UNSPSC Class 39121300
UOM EA
Vendor Product MAS0406021R5
Colour RAL7035 Light Grey
Depth 210 mm
Door Material Mild Steel
Finish Powder Coated
Gasket Material FIP Polyurethane
Height 400 mm
Housing Material Mild Steel
IP Rating IP66
Mounting Method Wall
Mounting Plate Material Galvanised Steel
NEMA Rating NEMA 4X/12/13
Number of Doors 1
Please Note Indoor Use
Product Type Enclosures Metal
Width 600 mm

Description

Enclosure Single Door General Purpose Industrial, 1 Door, Wall Mount, IP66, NEMA 4X, 12, 13, Mild Steel Housing, Mild Steel Door, Galvanized Steel Mounting Plate, FIP Polyurethane Gasket, RAL 7035 Light Grey, Powder Coated, 400 mm Height, 600 mm Width, 210 mm Depth, Please Note: Indoor Use

Infosheets
