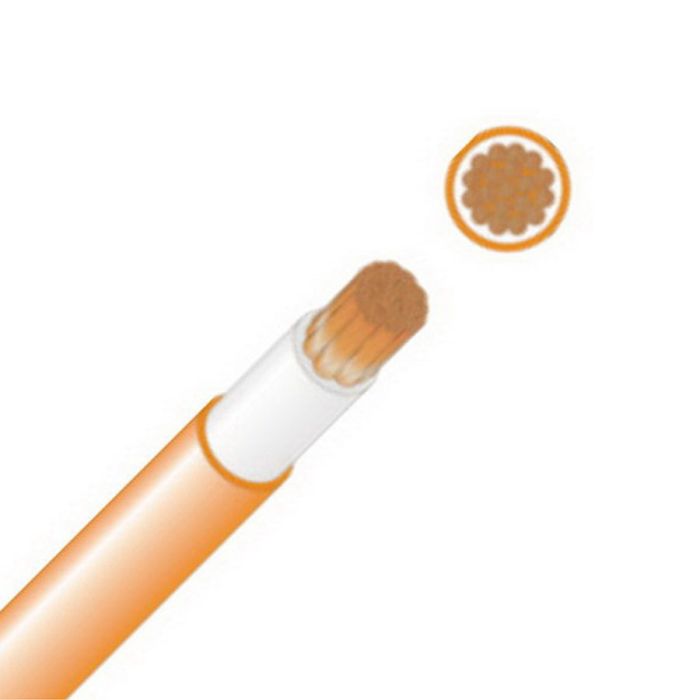

Electra 50mm 1 Core Orange SDI Welding Cable PVC/PVC
Electra 50mm 1 Core Orange SDI Welding Cable PVC/PVC
In stock
SKU
ELCZW50
Welding Cable, SDI, 50 mm, Annealed Copper, 0.6-1 kV, 1 Core, 1561/0.2 mm Strands, 13.6 mm Overall Diameter, 1 mm Insulation Thickness, 1.2 mm Sheath Thickness, 0.386 Ohm/km Conductor Resistance, RoHS Compliant PVC (NBR) Insulation, RoHS Compliant PVC (NBR) Sheath, Orange Sheath, AS 1995
| Brand | Electra |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | ZW50 |
| Conductor Resistance | 0.386 Ohm/km |
| Conductor Size | 50 mm |
| Conductor Type | Annealed Copper |
| Insulation Material | RoHS Compliant PVC (NBR) |
| Number of Cores | 1 Core |
| Insulation Thickness | 1 mm |
| Overall Diameter | 13.6 mm |
| Product Type | Welding Cable SDI |
| Sheath Colour | Orange |
| Sheath Thickness | 1.2 mm |
| Sheath Material | RoHS Compliant PVC (NBR) |
| Standards | AS 1995 |
| Stranding | 1561/0.2 mm |
| Voltage | 0.6-1 kV |
Description
Welding Cable, SDI, 50 mm, Annealed Copper, 0.6-1 kV, 1 Core, 1561/0.2 mm Strands, 13.6 mm Overall Diameter, 1 mm Insulation Thickness, 1.2 mm Sheath Thickness, 0.386 Ohm/km Conductor Resistance, RoHS Compliant PVC (NBR) Insulation, RoHS Compliant PVC (NBR) Sheath, Orange Sheath, AS 1995
