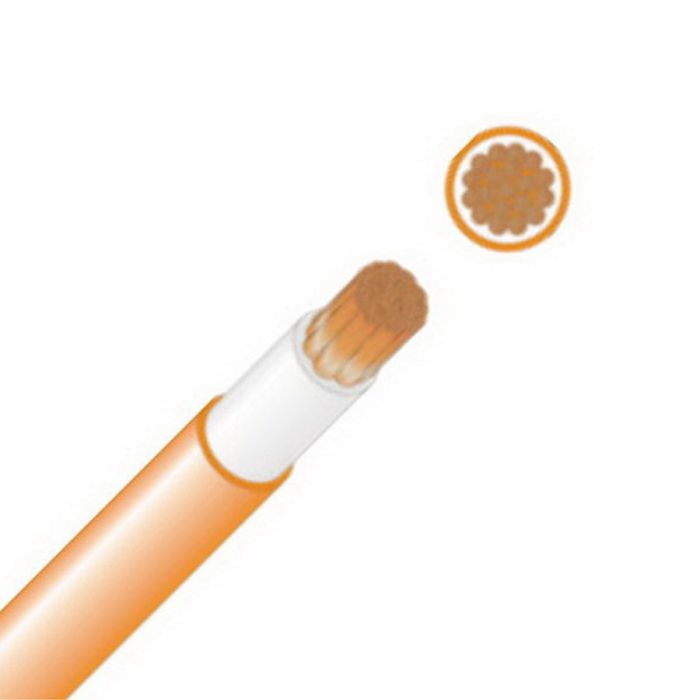

Electra 120mm 1 Core Orange SDI Welding Cable PVC/PVC
Electra 120mm 1 Core Orange SDI Welding Cable PVC/PVC
In stock
SKU
ELCZW120
Welding Cable, SDI, 120 mm, Annealed Copper, 0.6-1 kV, 1 Core, 1665/0.3 mm Strands, 20.4 mm Overall Diameter, 1.4 mm Insulation Thickness, 1.4 mm Sheath Thickness, 0.161 Ohm/km Conductor Resistance, RoHS Compliant PVC (NBR) Insulation, RoHS Compliant PVC (NBR) Sheath, Orange Sheath, AS 1995
| Brand | Electra |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | ZW120 |
| Conductor Resistance | 0.161 Ohm/km |
| Conductor Size | 120 mm |
| Conductor Type | Annealed Copper |
| Insulation Material | RoHS Compliant PVC (NBR) |
| Insulation Thickness | 1.4 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 20.4 mm |
| Product Type | Welding Cable SDI |
| Sheath Material | RoHS Compliant PVC (NBR) |
| Sheath Colour | Orange |
| Sheath Thickness | 1.4 mm |
| Stranding | 1665/0.3 mm |
| Standards | AS 1995 |
| Voltage | 0.6-1 kV |
Description
Welding Cable, SDI, 120 mm, Annealed Copper, 0.6-1 kV, 1 Core, 1665/0.3 mm Strands, 20.4 mm Overall Diameter, 1.4 mm Insulation Thickness, 1.4 mm Sheath Thickness, 0.161 Ohm/km Conductor Resistance, RoHS Compliant PVC (NBR) Insulation, RoHS Compliant PVC (NBR) Sheath, Orange Sheath, AS 1995
