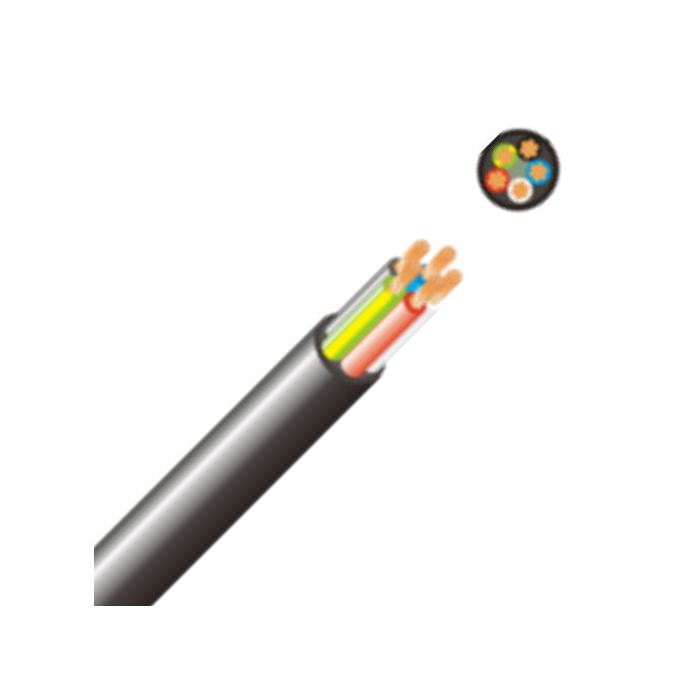

Electra 50mm Black Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 1mtr
Electra 50mm Black Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 1mtr
In stock
SKU
ELCXLPE4500E
Circular Cable, Unarmoured, 50mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 19/1.78mm Strands, 30.1mm Overall Diameter, 50mm Earth Conductor, 1 mtr Length, 361mm Bend Radius, 1mm + 0.7mm Earth Insulation Thickness, 1.9mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 4026
| Brand | Electra |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | XLPE4500E |
| Bend Radius | 361 mm |
| Conductor Size | 50 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Insulation Thickness | 1 mm + 0.7 mm Earth |
| Insulation Material | X-90 XLPE |
| Earth Conductor Size | 50 mm |
| Length | 1 mtr |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 30.1 mm |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.9 mm |
| Stranding | 19/1.78 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 4026 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Cable, Unarmoured, 50mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 19/1.78mm Strands, 30.1mm Overall Diameter, 50mm Earth Conductor, 1 mtr Length, 361mm Bend Radius, 1mm + 0.7mm Earth Insulation Thickness, 1.9mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 4026
