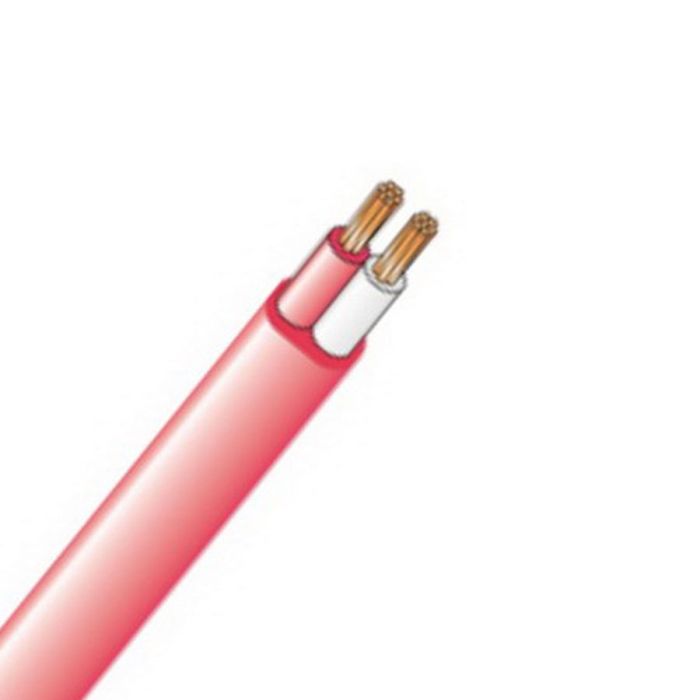

Electra 1.5mm Flat TPS Cable Fire Control Light Duty Red/White 100mtr
Electra 1.5mm Flat TPS Cable Fire Control Light Duty Red/White 100mtr
In stock
SKU
ELCXFC7502-LD-100
Flat TPS Cable Fire Control Light Duty, 1.5 mm, Annealed Copper, 250 Volt, 15 Amp, 2 Core, 2x7/0.5 mm Strands, 4.9 mm x 7.5 mm Overall Diameter, 100 mtr Length, 0.6 mm Insulation Thickness, 1.1 mm Sheath Thickness, DC: 13.6 Ohm/km Conductor Resistance, Red/White Core, V-75 PVC Insulation, V-75 PVC Sheath, Red/White Trace Sheath, AS/NZS 3013 2005(WSX1l) AS/NZS 1125 IEC 60228 AS/NZS 3808, Printing LV
| Brand | Electra |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | XFC7502-LD-100 |
| Conductor Resistance | DC: 13.6 Ohm/km |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/White |
| Current | 15 Amp |
| Insulation Material | V-75 PVC |
| Length | 100 mtr |
| Insulation Thickness | 0.6 mm |
| Number of Cores | 2 Core |
| Overall Diameter | 4.9 mm x 7.5 mm |
| Please Note | Printing LV |
| Product Type | Fire Control Cable |
| Sheath Colour | Red/White Trace |
| Sheath Material | V-75 PVC |
| Sheath Thickness | 1.1 mm |
| Standards | AS/NZS 3013 2005(WSX1l) AS/NZS 1125 IEC 60228 AS/NZS 3808 |
| Stranding | 2x7/0.5 mm |
| Voltage | 250 Volt |
Description
Flat TPS Cable Fire Control Light Duty, 1.5 mm, Annealed Copper, 250 Volt, 15 Amp, 2 Core, 2x7/0.5 mm Strands, 4.9 mm x 7.5 mm Overall Diameter, 100 mtr Length, 0.6 mm Insulation Thickness, 1.1 mm Sheath Thickness, DC: 13.6 Ohm/km Conductor Resistance, Red/White Core, V-75 PVC Insulation, V-75 PVC Sheath, Red/White Trace Sheath, AS/NZS 3013 2005(WSX1l) AS/NZS 1125 IEC 60228 AS/NZS 3808, Printing LV
