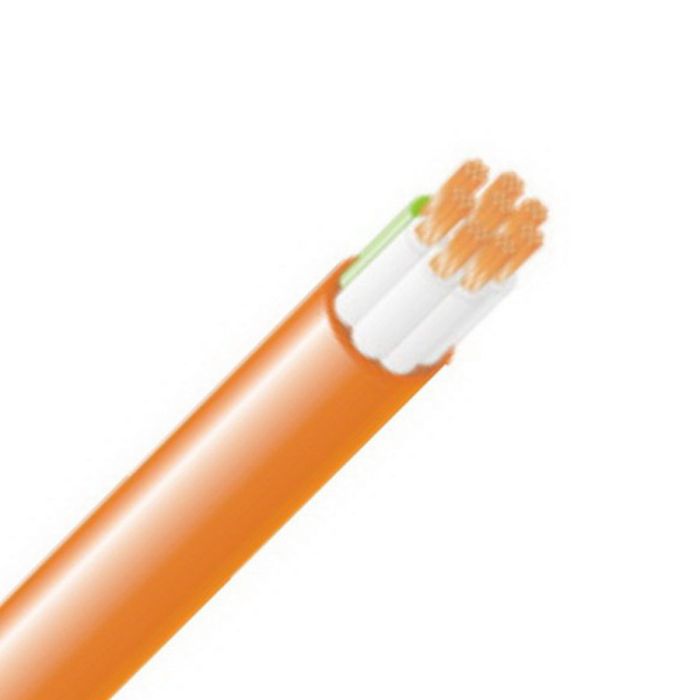

Electra 1.5 mm Orange Circular Control Cable Unarmoured V-90 PVC/5V-90 PVC 1mtr
Electra 1.5 mm Orange Circular Control Cable Unarmoured V-90 PVC/5V-90 PVC 1mtr
Circular Control Cable, Unarmoured, 1.5 mm, Annealed Copper, 0.6-1 kV, 12 Core + Earth, 20x7/0.5 mm + 7/0.5 mm Earth Strands, 22.9 mm Overall Diameter, 1 mtr Length, 0.8 mm + 0.6 mm Earth Insulation Thickness, 1.8 mm Sheath Thickness, White Numerals/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
Brand | Electra |
---|---|
Standard Pack Size | 1 |
UNSPSC Class | 26121600 |
UOM | MTR |
Vendor Product | SRC20015E |
Conductor Size | 1.5 mm |
Conductor Type | Annealed Copper |
Core Colours | Green/Yellow/White Numerals |
Insulation Material | V-90 PVC |
Insulation Thickness | 0.8 mm + 0.6 mm Earth |
Length | 1 mtr |
Number of Cores | 12 Core + Earth |
Overall Diameter | 22.9 mm |
Product Type | Circular Control Unarmoured |
Sheath Colour | Orange |
Standards | AS/NZS 1125 AS/NZS 5000.1 |
Sheath Thickness | 1.8 mm |
Sheath Material | 5V-90 PVC |
Stranding | 20x7/0.5 mm + 7/0.5 mm Earth |
Temperature | 90 deg C |
Voltage | 0.6-1 kV |
Description
Circular Control Cable, Unarmoured, 1.5 mm, Annealed Copper, 0.6-1 kV, 12 Core + Earth, 20x7/0.5 mm + 7/0.5 mm Earth Strands, 22.9 mm Overall Diameter, 1 mtr Length, 0.8 mm + 0.6 mm Earth Insulation Thickness, 1.8 mm Sheath Thickness, White Numerals/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
