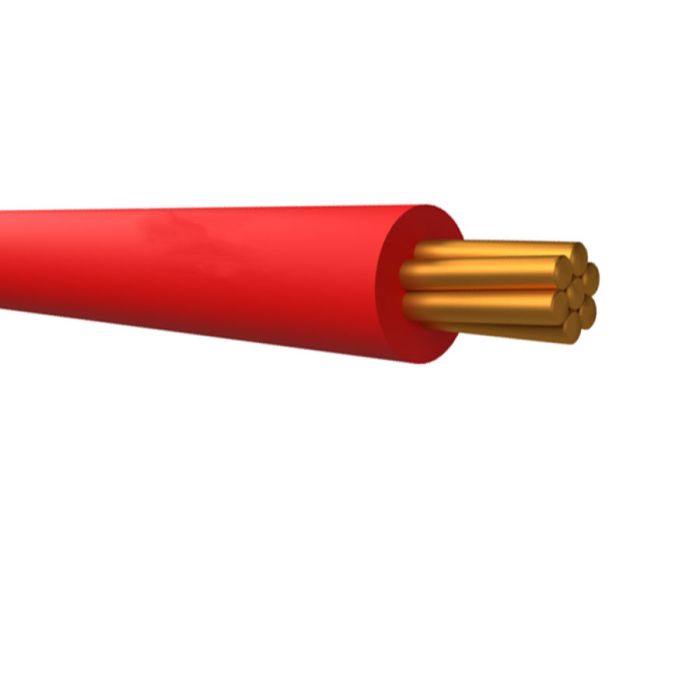

Electra 70mm Building Wire Red 100mtr
Electra 70mm Building Wire Red 100mtr
In stock
SKU
ELCSR1700-RD
Building Wire, Single Insulated, 1 Core, 70 mm, Plain Annealed Copper, 0.6/1 kV, 175 Amp, 19/2.14 mm Strands, 13.6 mm Overall Diameter, 60 mm Bend Radius, 1.4 mm Insulation Thickness, Conductor Resistance: DC - 0.268 Ohm/km AC - 0.327 Ohm/km, V-90 PVC Insulation, Unsheathed, Red Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 3808
| Brand | Electra |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | SR1700-RD |
| Bend Radius | 60 mm |
| Conductor Resistance | DC: 0.268 Ohm/km AC: 0.327 Ohm/km |
| Conductor Size | 70 mm |
| Conductor Type | Annealed Copper |
| Current | 175 Amp |
| Insulation Colour | Red |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 1.4 mm |
| Overall Diameter | 13.6 mm |
| Standards | AS/NZS 1125 AS/NZS 5000.1 AS/NZS 3808 |
| Product Type | Building Wire |
| Stranding | 19/2.14 mm |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Building Wire, Single Insulated, 1 Core, 70 mm, Plain Annealed Copper, 0.6/1 kV, 175 Amp, 19/2.14 mm Strands, 13.6 mm Overall Diameter, 60 mm Bend Radius, 1.4 mm Insulation Thickness, Conductor Resistance: DC - 0.268 Ohm/km AC - 0.327 Ohm/km, V-90 PVC Insulation, Unsheathed, Red Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 3808
