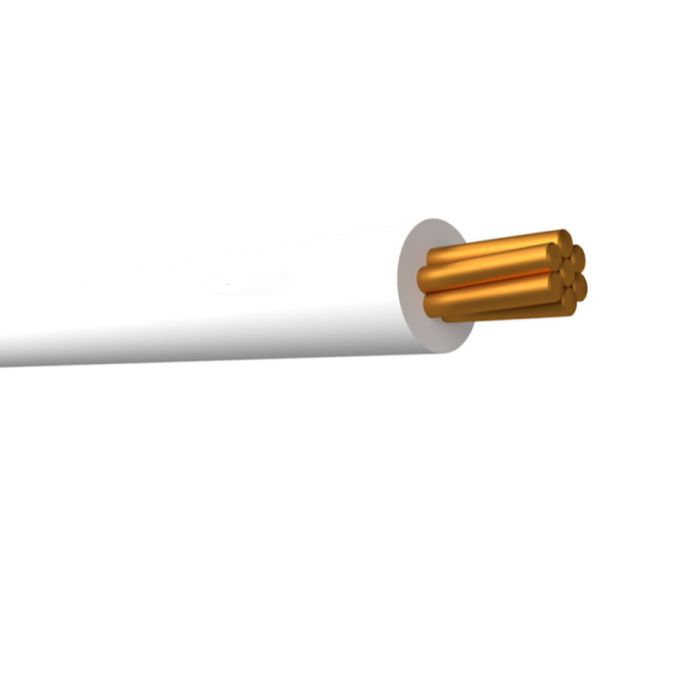

Building Wire 1 Core 10mm V-90 PVC White 0.6/1kV

In stock
SKU
ELCSR1100-WHE

Building Wire, Single Insulated, 1 Core, 10 sq-mm, Plain Annealed Copper, 0.6/1 kV, 53 Amp, 7/1.35 mm Strands, 6.1 mm Overall Diameter, 25 mm Bend Radius, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.83 Ohm/km AC - 2.23 Ohm/km, V-90 PVC Insulation, Unsheathed, White Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 3808
More Information
Brand Electra
Standard Pack Size 100
UNSPSC Class 26121500
UOM MTR
Vendor Product SR1100-WHE
Temperature 90 deg C
Insulation Material V-90 PVC
Insulation Colour White
Voltage 0.6-1 kV
Current 53 Amp
Conductor Resistance DC: 1.83 Ohm/km AC: 2.23 Ohm/km
Bend Radius 25 mm
Sheath Material Unsheathed
Standards AS/NZS 1125 AS/NZS 5000.1 AS/NZS 3808
Insulation Thickness 1 mm
Overall Diameter 6.1 mm
Stranding 7/1.35 mm
Conductor Size 10 sq-mm
Conductor Type Plain Annealed Copper

Description

Building Wire, Single Insulated, 1 Core, 10 sq-mm, Plain Annealed Copper, 0.6/1 kV, 53 Amp, 7/1.35 mm Strands, 6.1 mm Overall Diameter, 25 mm Bend Radius, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.83 Ohm/km AC - 2.23 Ohm/km, V-90 PVC Insulation, Unsheathed, White Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 3808
