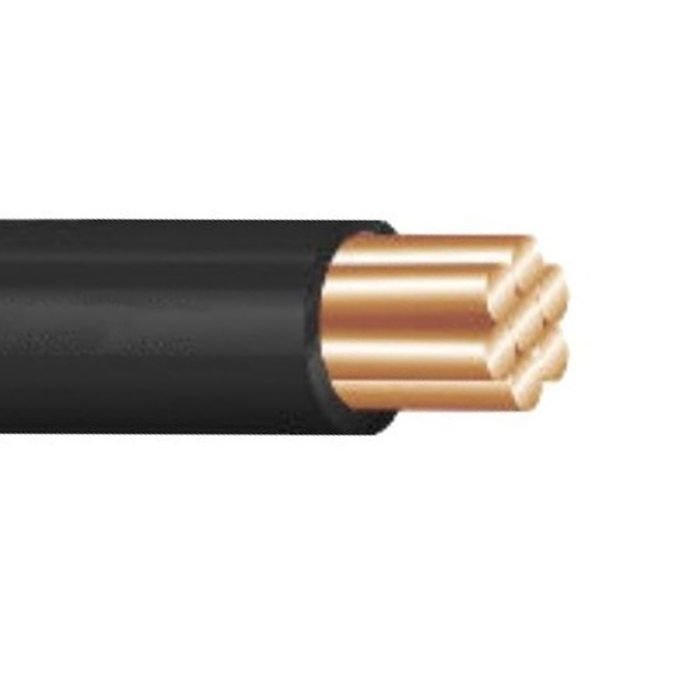

Electra 10mm Building Wire Black 100mtr
Electra 10mm Building Wire Black 100mtr
In stock
SKU
ELCSR1100-BLK
Building Wire, 10 mm, Annealed Copper, 0.6-1 kV, 53 Amp, 7/1.35 mm Strands, 6.1 mm Overall Diameter, 100 mtr Length, 25 mm Bend Radius, 1 mm Insulation Thickness, DC: 1.83 Ohm/km AC: 2.23 Ohm/km Conductor Resistance, V-90 PVC Insulation, Black Insulation, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
| Brand | Electra |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121614 |
| UOM | MTR |
| Vendor Product | SR1100-BLK |
| Bend Radius | 25 mm |
| Conductor Resistance | DC: 1.83 Ohm/km AC: 2.23 Ohm/km |
| Conductor Size | 10 mm |
| Conductor Type | Annealed Copper |
| Current | 53 Amp |
| Insulation Colour | Black |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 1 mm |
| Length | 100 mtr |
| Overall Diameter | 6.1 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 |
| Product Type | Building Wire |
| Stranding | 7/1.35 mm |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Building Wire, 10 mm, Annealed Copper, 0.6-1 kV, 53 Amp, 7/1.35 mm Strands, 6.1 mm Overall Diameter, 100 mtr Length, 25 mm Bend Radius, 1 mm Insulation Thickness, DC: 1.83 Ohm/km AC: 2.23 Ohm/km Conductor Resistance, V-90 PVC Insulation, Black Insulation, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
