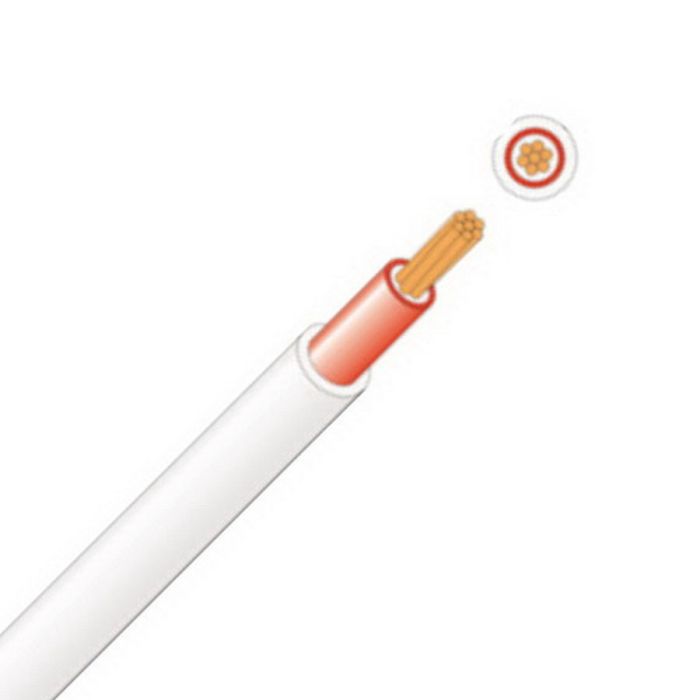

Electra 6mm SDI Cable Red 100mtr
Electra 6mm SDI Cable Red 100mtr
In stock
SKU
ELCSDI1060V-RD/WH
SDI Cable, 6 mm, Annealed Copper, 450-750 Volt, 1 Core, 1x7/1.04 mm Strands, 6.8 mm Overall Diameter, 100 mtr Length, 30 mm Bend Radius, 0.8 mm Insulation Thickness, 0.9 mm Sheath Thickness, DC: 3.08 Ohm/km AC: 3.75 Ohm/km Conductor Resistance, Red Core, V-90 PVC Insulation, 3V-90 PVC Sheath, White Sheath, 90 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
| Brand | Electra |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | SDI1060V-RD/WH |
| Bend Radius | 30 mm |
| Conductor Resistance | DC: 3.08 Ohm/km - AC: 3.75 Ohm/km |
| Conductor Size | 6 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.8 mm |
| Length | 100 mtr |
| Number of Cores | 1 Core |
| Overall Diameter | 6.8 mm |
| Product Type | SDI Cable |
| Sheath Colour | White |
| Sheath Material | 3V-90 PVC |
| Standards | AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808 |
| Sheath Thickness | 0.9 mm |
| Stranding | 1x7/1.04 mm |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
Description
SDI Cable, 6 mm, Annealed Copper, 450-750 Volt, 1 Core, 1x7/1.04 mm Strands, 6.8 mm Overall Diameter, 100 mtr Length, 30 mm Bend Radius, 0.8 mm Insulation Thickness, 0.9 mm Sheath Thickness, DC: 3.08 Ohm/km AC: 3.75 Ohm/km Conductor Resistance, Red Core, V-90 PVC Insulation, 3V-90 PVC Sheath, White Sheath, 90 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
