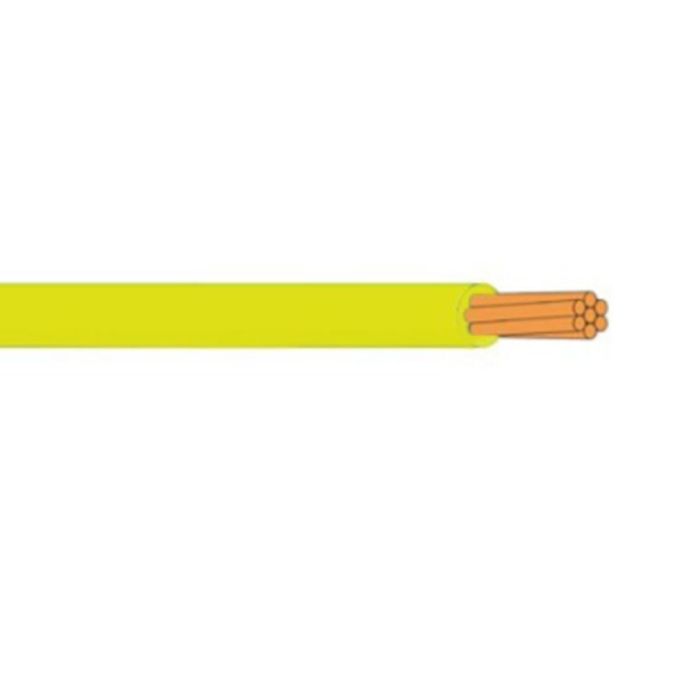

Building Wire 1 Core 0.5mm V90HT PVC Yellow 0.6/1kV
Electra 0.5mm Building Wire Yellow 100mtr
In stock
SKU
ELCR1005-YE
Building Wire, 0.5 mm, Annealed Copper, 0.6-1 kV, 1/0.8 mm Strands, 2.4 mm Overall Diameter, 100 mtr Length, 0.8 mm Insulation Thickness, V-90HT PVC Insulation, Yellow Insulation, 105 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
| Brand | Electra |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121614 |
| UOM | MTR |
| Vendor Product | R1005-YE |
| Conductor Type | Annealed Copper |
| Insulation Colour | Yellow |
| Insulation Thickness | 0.8 mm |
| Insulation Material | V-90HT PVC |
| Length | 100 mtr |
| Overall Diameter | 2.4 mm |
| Stranding | 1/0.8 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 |
| Temperature | 105 deg C |
| Voltage | 0.6-1 kV |
| Conductor Size | 0.5 mm |
| Product Type | Building Wire |
Description
Building Wire, 0.5 mm, Annealed Copper, 0.6-1 kV, 1/0.8 mm Strands, 2.4 mm Overall Diameter, 100 mtr Length, 0.8 mm Insulation Thickness, V-90HT PVC Insulation, Yellow Insulation, 105 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
